200uA Anti Static Elimination Devices

200uA Anti Static Elimination Devices
200uA Anti Static Elimination Devices

Large Image :  200uA Anti Static Elimination Devices

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: ATS-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Model: ATS-2 Operating Voltage Power Supply: AC 4.6KV (work With ATS-3001 Power Supply)
Current Consumption: 200μA Operating Temperature: 0℃-50℃
Weight: 0.3kg HV Cable Length: 2M
High Light:

200uA Static Elimination Devices


0.3kg Static Elimination Devices


4.6KV anti static eliminator

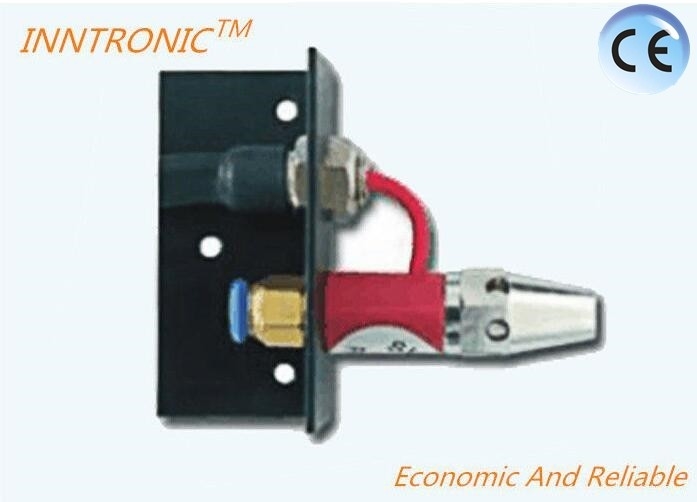

ATS-2 Red head Ionizing Air Nozzle for automatically removing electrostatic dust removal device


ATS-2 Red Head Anti Static Air Nozzle For Automatically Removing Electrostatic / Dust Removal Device


ATS-2 Ionizing air nozzle is a special fixed equipment to eliminate static electricity, it uses strong ion wind clear the surface electrostatic and foreign body, dust, it belongs to industrial category. The appearance design is suitable for automatically removing electrostatic dust removal device.

It must be used with ATS 3001high voltage power supply.


Working principle:
ATS-2 Ionizing air nozzle can produce positive and negative charge with a lot of, the high-speed gas compression blow out, can be brought to the charge on the object and fall, when the object surface is negatively charged, it will attract positive charge in the air, when the object surface is positively charged, it will be a negative charge attract in the air flow, so that the static electricity on the surface of the object and, to eliminate the purpose of static electricity, high compressed air can also be the object on the stubborn dirt blown away, to neutralize electrostatic and dust objective.


Installation Instructions

               ATS Series Ion air gun need be used with ATS power supply together;

· 1.    Put the end of air gun line into Powersupply’s output jack;

· 2.    then clockwise to the end, and keep the air gun’s grounding wire connect to the lateral                   powersupply grounding pole;

 · 3.   confirm the ground connection is good;

· 4.    The powersupply plug into a socket on the ground (note the maxi use of high voltage );

·         Keep air gun connect with compressed gas, open the power supply can work.
          Note: if you can,pls choose to install the air filter.

Product warranty and service
1, warranty
       All the product’s warranty period is one year, since the date of sale quality problems caused due to            product a year own part, material and process problems, we will repair free of charge.

2,  After the warranty period of service
       Where the company sells after warranty period still will be responsible to repair the product free in            charge, in order to protect the interests of customers.

3, If customers open and repair ion fan themselves, Our company won’t supply free warranty,                     according to the situation of discretion.


Product features:

  • · Eliminate static quickly
  • · Ion airflow strongly
  • · Widely range of wind adjusting ( it need install control valve
  • · Good ground-connection protection
  •    Mainly used in electronics, spraying, injection molding,injection molding etc.



Operating Voltage

Power Supply

AC 4.6KV

(work with ATS-3001 Power supply)

Current consumption 200μA
Operating Temperature 0℃-50℃
Weight 0.3kg
HV Cable length 2M
Operating air pressure 40-70psi
Operating Air velocity >10m/sec



Test Results

Testing Voltage:5KV-500V ,Operating Voltage:4.6KV
Temperature:22℃ Humidity:60%±5
Distance   30mm 90mm 150mm
Decay time Positive 0.1s 0.2s 0.9s
Negative 0.2s 0.2s 0.7s
Offset Voltage Positive -28V -18V +19V
Negative -29V -17V +18V
