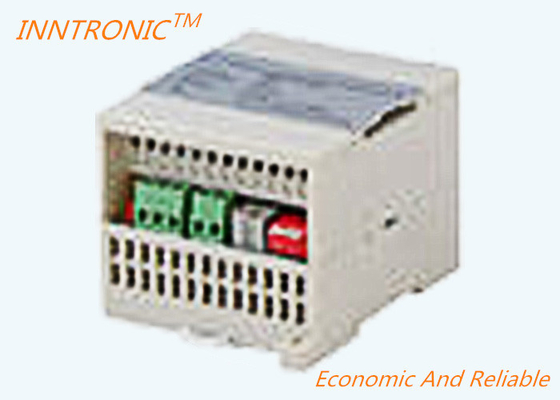

INA2PS Analog white plastic load cell sensor transmitter with box accuracy 1/10000 Weight amplifier for batching scale +- 50%FS

INA2PS 0-10V 4-20MA weight transmitter amplifier for batching scale silo scale Net input range of full capacity: -30 mV ~ +30mV

INA2PS Full Digital Conversion Load Cell Transmitter Analog Output Two - Button Calibration

• This Load cell amplifier/Weight transmitter Built-in 24 bits Σ-Δ integrated ADC chip for weighing conversion;
• Full digital conversion, no potentiometer or any other analog conditioning components;
• Analog output two-button calibration, it only needs calibrate once of zero and full.

1.  Accuracy: 1/10000
2 . Non-linearity: ≤0.008%F.S
3 . Zero temperature drift: ≤0.4μV/℃
4 . Temperature coefficient of span: ≤10ppm/℃
5 . Net input range of full capacity: -30 mV ~ +30mV
6 . Sensitivity of analog input signal: 0.5uV /d (Min.)
     1.5uV/d (Recommend)
7. Calibration range: +- 50%FS
8 . Display: No display
9 . Working temperature: -30℃~ 60℃
10 . Relative humidity: ≤ 90%(No condensation)
11 . Power supply: +18 ~ +26VDC,>0.5A
12. Load cell bridge voltage: DC 5V 1.5A Can max connect with 8 pieces of load cells whose impedance > 350Ω
13 . Output optional: 0~5V,0~10V,4~20mA(DIP switch selection)



Load cell amplifier/Weight transmitter Wiring:

•  +E: load cell power supply +
•  -E: load cell power supply -
•  GND: shield
•  +S: feedback signal +
•  -S: Feedback signal -
