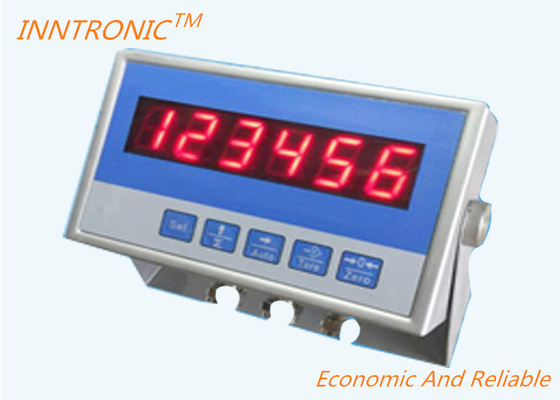

IN-420 SS304 IP66 Stainless Steel 24bits blue Weight Controller Load Cell sensor Display RS485/RS232 For Silo Scale

Name: IN-420 SS304 IP66 Stainless Steel 24bits blue Weight Controller Load Cell sensor Display RS485/RS232 For Silo Scale
Brand: inntronic
SKU: IN-420
Rating: 4.5 (183 reviews)

Large Image : IN-420 SS304 IP66 Stainless Steel 24bits blue Weight Controller Load Cell sensor Display RS485/RS232 For Silo Scale

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-420

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Payment Terms:	L/C, T/T, Paypal

Contact Now

Detailed Product Description

Product Name:	Weighing Indicator Controller	Material:	Stainless Steel SS304
Application:	Batching Scale Silo Scale	IP Rating:	IP66
Power Supply:	AC Adaptor, 100-240VAC, 50-60Hz	Accuracy:	24bits
Application:	Silo Scale
Highlight:	SS304 programmable weighing controller , IP66 programmable weighing controller , SS304 load cell display and controller

IN-420 Weighing Indicator Controller for batching scale silo scale

Interchangeable With ATRAX 420 PLUS INDICATOR

Stainless Steel Weighing Indicator Controller , Digital Load Controller For Silo Scale IP66

RS485/RS232 signal output with Modbus rtu available
2 RELAYS(Optional)
Free PC software with programable for all function

Special Function

Fast speed
High accuracy

Weight Controller Function:

• Auto zero scale • Auto zero tracking • Normal weighing

• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)

Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles

per second and drives up to eight 350Ω or sixteen 700Ω load cells.

With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications

and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000
COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
Material: Stainless steel SS304
IP Rating: IP66
LED 6-digit display
Power Supply: AC adaptor, 100-240VAC, 50-60Hz
Parameter and calibration settings are performed on the front panel
LABRADOR computer software for parameter and calibration settings
Units of Measurement: kg, lb
Improper operation and fault indication
Two way relay signal output
Equipped with RS-232 and RS-485 connecting ports
Print functions with programmable print format
Built-in clock

Weight Controlloer Data

Enclosure Material	Stainless steel SS304
Units of Measurement	kg, lb
Working Humidity	≤90% RH
Working Temperature	-10°C to 40°C/14°F to 104°F
Dimensions (mm)	226mm x 71mm x 161mm
Dimensions (in)	8.9in x 3.7in x 6.34in
Display Type	LCD
Display Digits	6 digits
Digit Height	25.4mm/1in
Display Dimensions	143mm x 41mm/5.6in x 1.6in
Power Supply	AC adaptor, 100-240VAC, 50-60Hz
IP Rating	IP66

Division	1, 2, 5, 10
Tare Range	100% of Cn
Maximum Number of Load Cells	8×350Ω or 16×700Ω
Maximum Power Consumption	6VA
Excitation Voltage	5VDC ± 5%
Fusible Link Fuse (slow blow)	1A
Communications Interface	RS-232C, RS-485
Print Interface	Serial interface
