10mV Weighing Indicator Controller

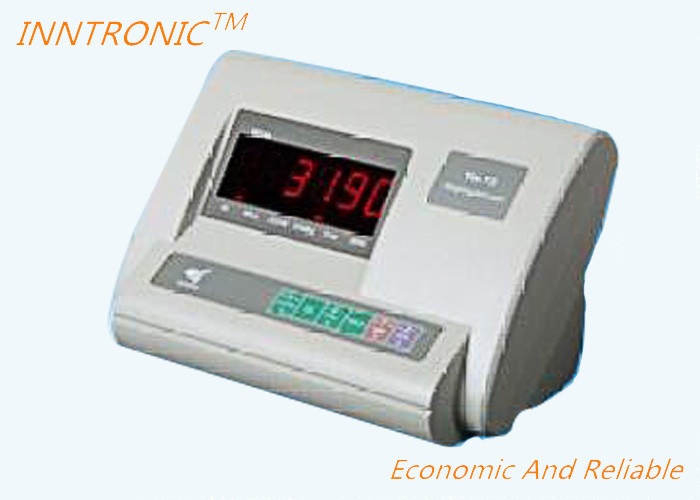

Large Image : 10mV Weighing Indicator Controller

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN- YH-T3

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Payment Terms:	L/C, T/T, Paypal

Contact Now

Detailed Product Description

Catagories:	Weighing Indicator Controller	Original:	China
Application:	Weighing System Equipped With 1~4 Load Cell	Input Signal Range:	0mV~10mV
Input Sensitivity:	≥1 μV/e	Load Cell Excitation:	DC 5V
A/D Conversion Speed:	≥40 Times/sec.	A/D Conversion Method:	Tri-integral
AC Power:	AC 187-242V,49-51Hz	DC Power:	Built-in DC 6V/4Ah Battery
Highlight:	10mV Weighing Indicator Controller , 5mV Weighing Indicator Controller , 6V digital weighing controller

IN- YH-T3 Weighing indicator Controller for weighing system equipped with 1~4 load cell

Information

proname :YH-T3

Introduction

Weighing indicator YH-T3 adopts tri-integral A/D conversion technology, widely applied in weighing system equipped with 1~4 load cell.

Standard function

◆ High precision A/D conversion with readability 30000
◆ Able to auto adjust speed and range of digital filter
◆ Able to display in power-saving mode
◆ Protection for low battery
◆ With built in rechargeable 6V/4AH battery
◆ Optional of RS232 interface with selectable baud rate
◆ Auto/manual accumulation
◆ Able to display at 10-time enlargement (counts≤10000)
◆ Able to lock displaying result
◆ Switch between KG/LB

Technical parameter

◆ A/D conversion method: Tri-integral
◆ A/D conversion speed: ≥40 times/sec.
◆ Max. A/D conversion: 720000
◆ Input signal range: 0mV~10mV
◆ Input sensitivity: ≥1 μV/e
◆ Load cell excitation: DC 5V
◆ Max. connection number of load cell: 4 at 350 ohm
◆ Verified counts: 3000
◆ Max. external counts: 30000
◆ Division: 1/2/5/10/20/50 optional
◆ Display: 6 bits LED, 6 status indications
◆ Display range: -99990~99990(d=10)
◆ Serial communication(optional)
◆ Optional standard:RS232C
◆ Baud Rate:1200/2400/4800/9600 optional
◆ Communication method:continuous sending method
◆ Transmission distance≤30m
◆ AC Power:AC 187-242V,49-51Hz
◆ DC Power:built-in DC 6V/4Ah battery
