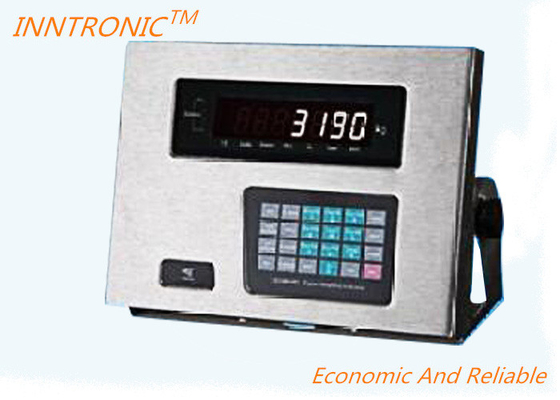

IN-XK3190-DS3 20mA electronic Floor truck Scale Weight Load Cell digital Indicator Controller IP66 0.8A AC/DC 12V

Large Image : IN-XK3190-DS3 20mA electronic Floor truck Scale Weight Load Cell digital Indicator Controller IP66 0.8A AC/DC 12V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-XK3190-DS3

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Payment Terms:	L/C, T/T, Paypal

Contact Now

Detailed Product Description

Catagories:	Weighing Indicator Controller	Original:	China
Application:	Electronic Floor Scale、electronic Truck Scale	Connection Method:	RS485、 Capatiable For Both Four And Six Wires
Load Cell Power:	DC 12V,0.8A(Max)	Display Method:	7 Bits Super Bright LED Display, 10 Indications
Signal:	20mA Current Loop，serial.	Baud Rate:	600
Transmission Distance:	≤2000 Meters	Power Supply:	AC187～242V;49～51HZ
Highlight:	20mA Weighing Indicator Controller , Floor Scale Weighing Indicator Controller , 0.8A programmable load cell controller

IN-XK3190-DS3 Weighing indicator Controller for electronic floor scale

IN-XK3190-DS3 Floor Scale Weighing Indicator Controller , Programmable Load Cell Controller

Information

proname :IN-XK3190-DS3

Introduction

Weighing indicator IN-XK3190-DS3 is widely applied in electronic floor scale,electronic truck scale ,static railway scale and so on alike static weighing system equipped with 1~16 digital load cell.

Feature:
◆ AC/DC power supply
◆ Interface adopts new magnet-proof technology
◆ With optional interface
(a) Printing data separate module
(b) Digital output module
(c) 4～20mA module

Standard function

◆ Able to connect several sorts of digital load cells using Yaohua protocal
◆ Auto/semi-auto/manual angle correction
◆ Digital load cell communication address modification function
◆ Single load cell and single angle data checking function
◆ With two divisions auto switch function
◆ Non-linearity correction and calibration tolerance correction
◆ Time power-off function
◆ Weighing data save/check/delete/ protection in case of power off
◆ Standard RS232C (RS422/RS485 optional) communication interface
◆ Standard scoreboard interface with 20mA current loop method
◆ Standard parallel print interface
◆ Able to save 1000 vehicle ID and corresponding tare weight,201 cargo ID and corresponding cargo name,1001 weighing records
◆ Able to back up and recover various parameters of indicator, reliable and practical

Technical parameter

◆ Digital load cell connection
Connection method: RS485, capatiable for both four and six wires
Connection distance: About 1000 meters
Connection quantity:1~16
Communication protocol of load cell: YAOHUA
Load cell power: DC 12V,0.8A(Max)
◆ Display
Display method: 7 bits super bright LED display, 10 indications
◆ Clock: real clock
◆ Scoreboard interface
Signal: 20mA current loop,serial. Baud rate: 600 Transmission distance: ≤2000 meters
◆ Printer interface
Available for wide line printer:LQ-300K,KX-P1131,KX-P1121 ,
DS-300 Thermal micro-printer:POS58,T58D
Optional panel type micro printer
◆ Serial communication interface
Standard interface: RS232C (RS422/RS485 optional)
◆ Power supply:AC187～242V;49～51HZ
DC power supply: (outside) rechargeable 12V battery
