Bellow Load Cell IN-35505 500kg Alloy Steel Stainless Steel IP68 Cantilever Type Shear Beam weight force sensor for Silo 2mv/v

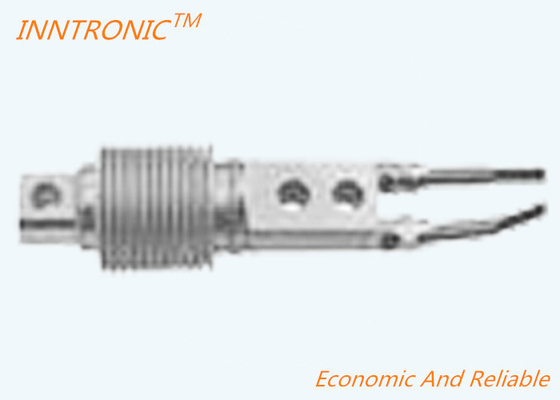

Large Image : Bellow Load Cell IN-35505 500kg Alloy Steel Stainless Steel IP68 Cantilever Type Shear Beam weight force sensor for Silo 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-35505

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Ended Silo Load Cell	Capacity:	10kg To 500kg
Output:	2mv/v	Material:	Stainless Steel/Alloy Steel
Application:	Silo Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP68	Accuracy Grade:	OIML R60 C2 C3
Cable Length:	3m	Size:	12025.545
Highlight:	10kg Shear Beam Load Cell , 500kg Shear Beam Load Cell , cantilever type load cell OIML R60

IN-35505 10kg to 500kg Single Ended Load Cell for silo scale

Low Profile 10kg To 500kg Silo Load Cells , Single Ended Load Cell With 3m Cable for silo scale

features:

Accuracy class to OIML R60 C2 C3
Sensitivity(Cn)/Zero balance:2.0 ±0.002/0 ±0.02m/v
Non-linearity:±0.0250 ±0.0167,mv/v

Items	UNIT	TECHNICAL DATA
Accuracy class to OIML R60		C2 C3
Maximum capacity(Emax):	kg	10,20,50,75,100,200,250,300,500,1000
Minimum LC verification interval(Vmin)	% of Emax	0.0200 0.0100
Sensitivity(Cn)/Zero balance	mV/V	2.0 ±0.002/0 ±0.02
Temperature effect on zero balance(TKo)	% of Cn/10k	±0.02 ±.0017
Temperature effect on sensitivity(TKc)	% of Cn/10k	±0.02 ±.0017
Hysteresis error(dhy):	% of Cn	±0.0270 ±0.0180
Non-linearity(din)	% of Cn	±0.0250 ±0.0167
Creep(dcr) over 30 min	% of Cn	±0.0233 ±0.0167
Input(Rlc)&output resistance(Ro)	Ω	400±10 & 352±3
Nominal range of excitation voltage(Bu)	V	5~12
Insulation resistance(Ris) at 50 Vdc	MΩ	≥5000
Service temperature range(Btu)	℃	-30...+70
Safe load limit(El)&breaking load(Ed)	% of Emax	120 &200
Protection class according to EN 60 529(IEC 529)		IP68
Material: measuring element cable fitting Cable sheath		Stainless or alloy steel stainless steel or nickel-plated brass PVC
Maximum capacity(Emax)	kg	10	20	50	75	100	200	250	300	500	1000
Deflection at Emax(snom),approx	mm	0.31							0.39		0.55
Weight(G),approx	kg	0.5									1.9
Cable: Diameter: φ5mm Length: 5mm	m	3									5
