Product Details:
Payment & Shipping Terms:
|
| Pattern: | Share Beam Silo Load Cell | Capacity: | 1.25klb 2.5klb 5klb Load Cell |
|---|---|---|---|
| Output: | 2mv/v | Material: | Stainless Steel/Alloy Steel |
| Application: | Batching Scale | Interchangeable Brand: | Weigh-Tronix 41035-0029 1.25K LOAD CELL |
| IP Protection Standard: | IP68 | Accuracy Grade: | C3 |
| Highlight: | 1.25klb shear beam load cell,2.5klb low profile load cell,Batching scale load cell bending beam |
||

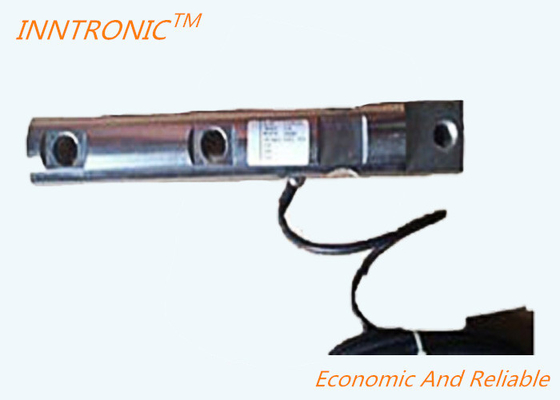

Batching Scale Share Beam Silo Load Cell 1.25klb 2.5klb 5klb Good Interchangeability
Weigh-Tronix 41035-0029 1.25K LOAD CELL
| Items | UNIT | TECHNICAL DATA |
| Capacities | lb | 1.25K & 2.5k |
| Rated output | mV/V | 2 |
| Safe overload | FS | 150% |
| Excitation voltage | V | 10-20 AC/DC |
| Input resistance | OHMS | 385±10 |
| Output resistance | OHMS | 350±3 |
| Zero balance | FS | ±1.00% |
| Seal type | FS | ENVIRONMENTALLY SEALED,IP67 |
| Non-linearity | FS | ±0.03% |
| Hysteresis | FS | ±0.02% |
| Repeatability | FS | ±0.01% |
| Creep | FS | ±0.02% |
| Compensated temperature range | ºC | -10 ~ +40 |
| Temperature effect on zero | FS/ºC | ±0.0027% |
| Temperature effect on output | FS/ºC | ±0.0015% |
| Insulation resistance | MEGOHMS | >5000 |
| Load cell cable | 4 conductor, 20 FT | |
| Load cell wiring | Green +EXC Black -EXC White +SIG Red -SIG Braid/yellow: shield |
