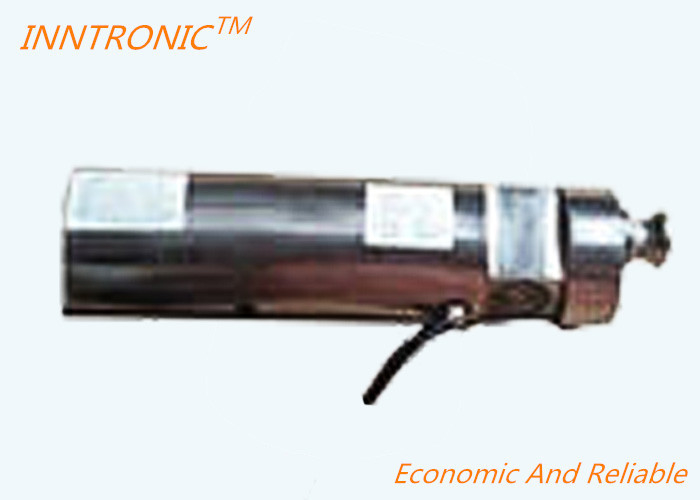

1.25klb Cantilever Shear Beam Load Cell

1.25klb Cantilever Shear Beam Load Cell
1.25klb Cantilever Shear Beam Load Cell

Large Image :  1.25klb Cantilever Shear Beam Load Cell

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-WB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Pattern: Share Beam Silo Load Cell Capacity: 1.25klb - 75klb Load Cell
Output: 2mv/v Material: Stainless Steel/Alloy Steel
Application: Batching Scale Interchangeable Brand: Rice Lake RL75000 SS LOAD CELL
IP Protection Standard: IP68 Accuracy Grade: C3
Non-linearity: 0.03% Size: 11.5*1.25*0.31
High Light:

1.25klb shear beam load cell


75klb shear beam load cell


SS304 cantilever type load cell

IN-WB 1.25klb to 75klb Share Beam silo Load Cell for batching scale

Easy Installation Silo Load Cells Sensitive Reaction With Self - Restoring Function for batching scale
  •  Rice Lake RL75000 SS LOAD CELL
  •  Weigh-Tronix 13498-0127 5K LOAD CELL
  •  Weigh-Tronix WBT Series Chainlink Style LOAD CELL
  •  Weigh-Tronix Weighbar LOAD CELL
Rated outputmV/V2(3.00mV/V =37.5K,50k,60k,75k)
Safe overloadFS150%
Excitation voltageV10-20 AC/DC
Input resistanceOHMS385±10
Output resistanceOHMS350±3
Zero balanceFS±1.00%
Compensated temperature rangeºC-10 ~ +40
Temperature effect on zeroFS/ºC±0.0027%
Temperature effect on outputFS/ºC±0.0015%
Insulation resistanceMEGOHMS>5000
Load cell cable 1.25K-10K: 4 conductor, 20 FT
25-75K: 4 conductor, 50 FT(BRAIDED SHIELD)
Load cell wiring Green +EXC Black -EXC White +SIG Red -SIG Braid/yellow: shield


 1.25klb Cantilever Shear Beam Load Cell 01.25klb Cantilever Shear Beam Load Cell 1
