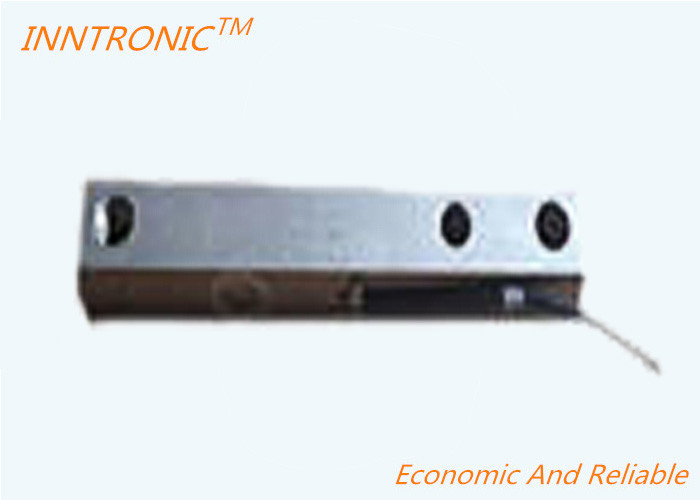

2.5K 5KLB Shear Beam Load Cell

Contact Now

Detailed Product Description

Pattern:	Share Beam Silo Load Cell	Capacity:	1.5K, 2.5K, 5K LB Load Cell
Output:	2m/v	Material:	Stainless Steel/Alloy Steel
Application:	For Silo Scale	Interchangeable Brand:	HBM BLF LOAD CELL
IP Protection Standard:	IP68	Accuracy Grade:	C3
Non-linearity:	0.03%	Size:	91.31.25
Highlight:	2.5KLB shear beam load cell , 30FT shear beam load cell , 5KLB low profile load cell

IN-BLF 1.5K 2.5K 5K LB Share Beam Silo Load Cell for silo scale

Damp Proofing High Accuracy Load Cell 1.5 - 5KLB Good Stability And Repeatability for silo scale

interchangeable brand；

Items	UNIT	TECHNICAL DATA
Capacities	lb	1.5K,2.5k,5k
Rated output	mV/V	2
Safe overload	FS	150%
Excitation voltage	V	10-20 AC/DC
Input resistance	OHMS	1080±10
Output resistance	OHMS	1000±5
Zero balance	FS	±1.00%
Seal type	FS	ENVIRONMENTALLY SEALED
Non-linearity	FS	±0.03%
Hysteresis	FS	±0.03%
Repeatability	FS	±0.01%
Creep	FS	±0.02%
Compensated temperature range	ºC	-10 ~ +40
Temperature effect on zero	FS/ºC	±0.0027%
Temperature effect on output	FS/ºC	±0.0015%
Insulation resistance	MEGOHMS	>5000
Load cell cable		4 conductor, 30 FT
Load cell wiring		Green +EXC Black -EXC White +SIG Red -SIG Braid/yellow: shield
