Weight sensor IN-PW10A Single Point Alloy steel Stainless steel weight Load Cell 300kg Food Industry for platform scale 2mv/v

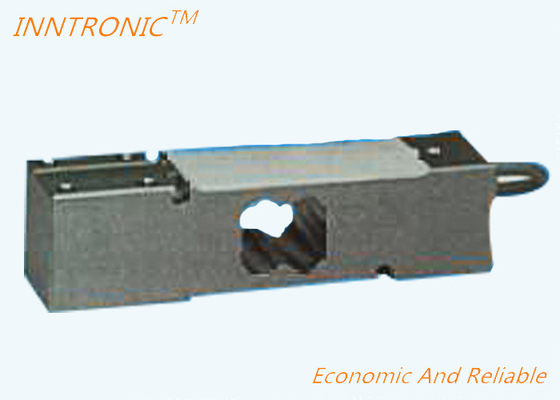

Large Image : Weight sensor IN-PW10A Single Point Alloy steel Stainless steel weight Load Cell 300kg Food Industry for platform scale 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-PW10A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	50,100,150,200,250,300kg
Output:	2mv/v	Material:	Alloy Steel ，Stainless Steel
Application:	Platform Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP67， IP68	Accuracy Grade:	C3
Cable Length:	6m	Size:	631.25
Highlight:	platform load cell , weighing machine using load cell

IN-PW10A 0.05 to 10t Single Point Load Cell for platform scale

Vishay-Tedea 3400 load cell

special features

Accuracy class:C2,C3
Zero balance:1.0%RO

RATED CAPACITY	DIMENSIONS
RATED CAPACITY	A	B	C	D	E	F	G	H	I
25-200LB	6	3	1	1.3	0.25	1	3.5	-	1/4-28UNF*0.75dp(4pics)
400-500LB	6	3	1	1.3	0.25	1	3.5	0.5	1/4-28UNF*0.75dp(8pics)
1K	6	3	1.5	1.8	0.25	1	3.5	1	5/16-24UNF*0.75dp(8pics)

Items	UNIT	TECHNICAL DATA

Capacity	t	0.05-10

Rated output	mV/V	3.0±0.04

Accuracy class		C2	C3

Combined error	%RO	<±0.030	<±0.020

Zero balance	%RO	±1.0

Input resistance	Ω	380±10	1050±10

Output resistance	Ω	350±3	1000±5

Insulation resistance	MΩ(50V)	5000

Recommended excitation voltage	V	5~12

Compensated temperature range	ºC	-10~+40

Operating temperature range	ºC	-35~+80

Safe overload	%RO	150

Ultimate overload	%RO	200

Load cell material		Alloy steel IP67

		17-4PH	Stainless steel IP68

Connecting cable		0.25~3tφ5.7X3.5m

		5~10tφ5.7X6m

Method of connecting wire		RedEX(+) Black(EX-) Green(Sig+)White(Sig-)
