Load Cell IN-HPS 6KG/100LB Single Point Aluminum-alloy Weight force sensor for platform scale IP65 2mv/v

Name: Load Cell IN-HPS 6KG/100LB Single Point Aluminum-alloy Weight force sensor for platform scale IP65 2mv/v
Brand: inntronic
SKU: IN-HPS
Rating: 5 (132 reviews)

Large Image : Load Cell IN-HPS 6KG/100LB Single Point Aluminum-alloy Weight force sensor for platform scale IP65 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-HPS

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	6KG/25LB-100LB
Output:	2mv/v	Material:	Aluminum-alloy
Application:	Platform Scales	Interchangeable Brand:	HBM
IP Protection Standard:	IP65	Accuracy Grade:	C3
Non-linearity:	0.017%F.S & 0.02%F.S	Size:	1504040
High Light:	platform load cell , low capacity load cell

IN-HPS 6KG 25LB to 100LB Single Point Load Cell for platform scales

special features:

Rated load: 100~500(kg)
Precision: C2
Aluminum-alloy; Colourless anodized;
Hermetically sealed with glue to IP65.
APPLICATIONS:
Electronic counting scales, platform scales etc.
DIMENSIONS:
Size: 150x40x40(mm) Thread hole: 9-M8

PARAMETERS:
Comprehensive error: 0.017%F.S & 0.02%F.S	Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.1mV/V	Excitation voltage: 9VDC~12VDC
Non-linearity: 0.017%F.S & 0.02%F.S	Compensated temp.range: -10℃~+40℃
Hysteresis: 0.02%F.S	Use temp.range: -20℃~+60℃
Repeatability: 0.01%F.S & 0.02%F.S	Temp.effect on zero: 0.017%F.S/10℃ & 0.03%F.S/10℃
Creep: 0.017%F.S/10min & 0.02%F.S/10min	Temp.effect on span: 0.014%F.S/10℃ & 0.02%F.S/10℃
Zero balance: ±1%F.S	Safe overload: 120%
Input resistance: 405±10Ω	Ultimate overload: 150%
Output resistance: 350±3Ω	Defense class: IP67&IP68

Items	UNIT	TECHNICAL DATA
Capacities	lb	6kg,25lb, 50lb&100lb
Rated output	mV/V	2±10%(6kg) 3±10%(25lb, 50lb, 100lb)
Safe overload	FS	150%
Excitation voltage	V	10-20 AC/DC
Input resistance	OHMS	385±10
Output resistance	OHMS	350±3
Zero balance	FS	±1.00%
Seal type	FS	ENVIRONMENTALLY SEALED,IP67
Non-linearity	FS	±0.03%
Hysteresis	FS	±0.02%
Repeatability	FS	±0.02%
Creep	FS	±0.03%
Compensated temperature range	ºC	-10 ~ +40
Temperature effect on zero	FS/ºC	±0.02%
Temperature effect on output	FS/ºC	±0.001%
Insulation resistance	MEGOHMS	>5000
Load cell cable		4 CONDUCTIOR, 10FT
Load cell wiring		Green +EXC Black -EXC White +SIG Red -SIG Braid/yellow: shield

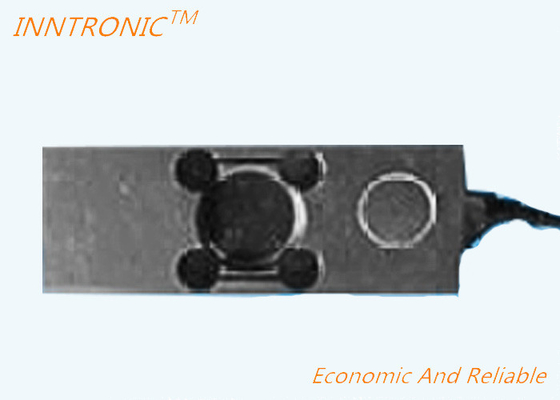

Load Cell IN-HPS 6KG/100LB Single Point Aluminum-alloy Weight force sensor for platform scale IP65 2mv/v 0

Load Cell IN-HPS 6KG/100LB Single Point Aluminum-alloy Weight force sensor for platform scale IP65 2mv/v 1
