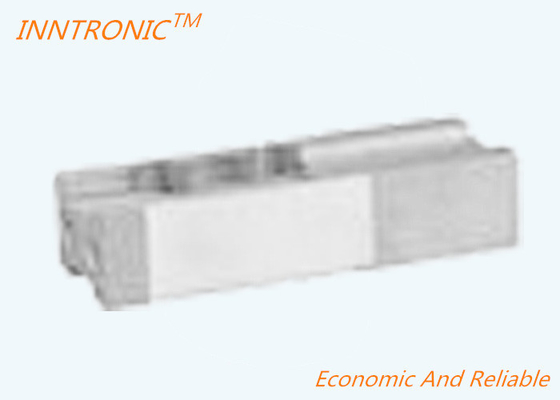

IN-L6C Load Cell 50kg C3 Aluminum IP66 Single Point Weight force sensor For Pricing Scale 2.0 +-10%mV/V

Name: IN-L6C Load Cell 50kg C3 Aluminum IP66 Single Point Weight force sensor For Pricing Scale 2.0 +-10%mV/V
Brand: inntronic
SKU: IN-L6C
Rating: 4.8 (136 reviews)

Large Image : IN-L6C Load Cell 50kg C3 Aluminum IP66 Single Point Weight force sensor For Pricing Scale 2.0 +-10%mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-L6C

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	3/5/8/20/30/50kg
Output:	2mv/v	Material:	Aluminum
Application:	Electronic Pricing Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP66	Accuracy Grade:	C3
Cable Length:	2m	Size:	1254529
Highlight:	3000g Aluminum Single Point Load Cell , 5000g Aluminum Single Point Load Cell , 2m cable high accuracy load cell

IN-L6C 3 to 50kg Single Point Load Cell for electronic pricing scale

High Accuracy Pressure Load Cell Light Weight For Electronic Weighing Devices for electronic pricing scale

special features:

Aluminum
High precision Single point load cell
Suitable for electronic pricing scale, electronic package
scale and other electronic weighing devices

PARAMETER	UNIT	TECHNICAL DATA
Rated capacity (Emax)	kg	3/5/8/20/30/50
Accuracy class		C3
Sensitivity	mV/V	2. +-10%
Zero balance	mV/V	0.02
Creep over 30min	%	0.023
Temperature effect on zero	%/	0.004
Temperature effect on output	%/	0.0017
Hysteresis	%	0.017
Linearity deviation	%	0.017
Repeatability	%	0.017
Nominal temperature range		-10 to +40
Service temperature range		-30 to +70
Limit load	% of R.C.	150
Break load	% of R.C.	200
Nominal excitation	V	5~12
Max. excitation	V	15
Input impedance		405+- 10
Output impedance		350+- 3
Insulation resistance	M	>2000
Cable length	M	2
Cable type		4 conductors, Braid Shielded, Black PVC Jacket
Color code		+Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht
Construction		Aluminum
Protection class to IEC529		IP 66
