Product Details:
Payment & Shipping Terms:
|
| Pattern: | Single Point Load Cell | Capacity: | 100kg 200kg 300kg 500kg 635kg 1,000kg |
|---|---|---|---|
| Output: | 2mv/v | Material: | Aluminum |
| Application: | Platform Scale | Interchangeable Brand: | HBM |
| IP Protection Standard: | IP67 | Accuracy Grade: | C3 |
| Hysteresis: | 0.017% | Size: | 191*75*75 |
| Highlight: | 0.1t Aluminum Single Point Load Cell,1t Aluminum Single Point Load Cell,Industrial load cells for platform scales |
||

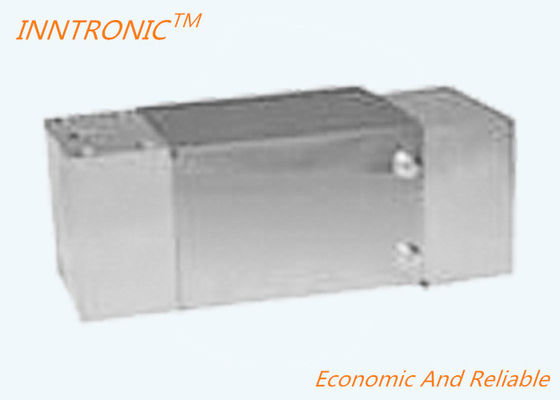

Strong Reset Ability Industrial Load Cells 0.1t To 1t Dust Proof Comply With OIML C3
Good quality with competitive price!
special features:
| Rated capacity (Emax) | kg | 100/200/300/500/635/ 1,000 |
| Accuracy class | C3 | |
| Sensitivity | mV/V | 2.0 ±10% |
| Platform size | mm | 750*750 |
| Zero balance | mV/V | 0.02 |
| Creep over 30min | % | 0.02 |
| Temperature effect on zero | %/ | 0.004 |
| Temperature effect on output | %/ | 0.0014 |
| Hysteresis | % | 0.017 |
| Linearity deviation | % | 0.017 |
| Repeatability | % | 0.017 |
| Nominal temperature range | -10 to +40 | |
| Service temperature range | -30 to +70 | |
| Limit load | % of R.C. | 150 |
| Break load | % of R.C. | 200 |
| Nominal excitation | V | 5~12 |
| Max. excitation | V | 15 |
| Input impedance | 405 ±10 | |
| Output impedance | 350 ±3 | |
| Insulation resistance | M | >2000 |
| Cable length | M | 2 |
| Cable type | 4 conductors, Braid Shielded, Black PVC Jacket |
