| Type: | Single Point Load Cell | Capacity: | 50 Kg To 750 Kg |
|---|---|---|---|
| Output: | 2mv/v | Material: | Stainless Steel |
| Application: | Platform Scale | Interchangeable Brand: | HBM |
| IP Protection Standard: | IP67 | Accuracy Grade: | C3 |
| Non-linearity: | 0.0166 | ||
| Highlight: | OIML R60 Aluminum Single Point Load Cell,IP67 Aluminum Single Point Load Cell,2mV/v tension and compression load cell |
||

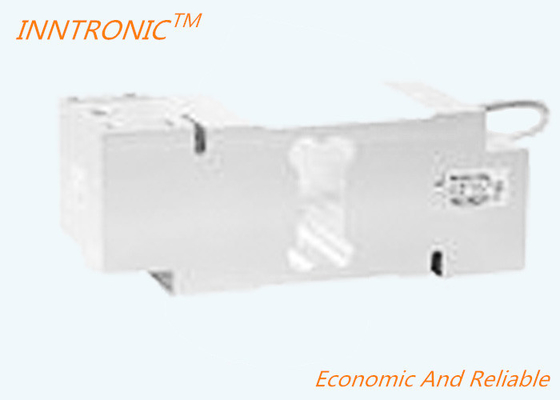

OIML R60 Approval Tension Link Load Cell 2mV/V Off Center Load Compensated for weighing scale
Special features
Optional:
| Type | IPW12C | ||||||||||
| Accuracy class1) | C3; C3MR | ||||||||||
| Number of load cell intervals (nLC) | 3000 | ||||||||||
| Maximum capacity (Emax)2)) | kg | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 500 | 635 | 750 |
|
Minimum LC verification interval (vmin) Accuracy class C3 |
g | 10 | 10 | 20 | 20 | 50 | 50 | 50 | 100 | 100 | 100 |
|
Temperature effect on zero balance (TK0) Accuracy class C3
|
% v. Cn / 10 K
|
±0.0280 | ±0.0186 | ±0.0280 | ±0.0186 | ±0.0350 | ±0.0280 | ±0.0233 | ±0.0280 | ±0.0221 | ±0.0186 |
|
Minimum LC verification interval (vmin) Accuracy class C3MR |
g | 5 | 5 | 10 | 10 | 20 | 20 | 20 | 50 | 50 | 50 |
|
Temperature effect on zero balance (TK0) Accuracy class C3MR |
% v. Cn / 10 K
|
±0.0140 | ±0.0093 | ±0.0140 | ±0.0093 | ±0.0140 | ±0.0112 | ±0.0093 | ±0.0140 | ±0.0110 | ±0.0093 |
| Max. platform size | mm | 800 x 800 | |||||||||
| Sensitivity (Cn) | mV/V | 2.0±0.2 (Option 6: A = 2mV/V±0.1%) | |||||||||
| Zero balance | 0±0.1 | ||||||||||
|
Temperature effect on sensitivity (TKC)3) Temperature range +20 ... +40℃ [+68 ... +104℉] −10 ... +20℃ [+14 ... +68℉] |
% v. Cn / 10 K
|
±0.0175 ±0.0117 |
|||||||||
| Hysteresis error (dhy)3) | % of Cn | ±0.0166 | |||||||||
| Non-linearity (dlin)3) | ±0.0166 | ||||||||||
| Minimum dead load output return (DR) | ±0.0166 | ||||||||||
| Off center load error4) | ±0.0233 | ||||||||||
| Input resistance (RLC) | Ω | 300 ... 500 | |||||||||
| Output resistance (R0) | 330 ... 430 (Option 6: A = 410 Ω±0.2 Ω) | ||||||||||
| Reference excitation voltage (Uref) | V | 5 | |||||||||
| Nominal range of excitation voltage (BU) | 15 | ||||||||||
| Max. excitation voltage | 15 | ||||||||||
| Insulation resistance (Ris) at 100 VDC | GΩ | > 2 | |||||||||
| Nominal temp. range (BT) |
°C [°F] |
−10 ... +40 [+14 ... +104] | |||||||||
| Service temp. range (Btu) | −10 ... +50 [+14 ... +122] | ||||||||||
| Storage temp. range (Btl) | −25 ... +70 [−13 ... +158] | ||||||||||
|
Safe load limit (EL ), at max. 100mm eccentricity |
% of Emax |
150 | |||||||||
| Lateral load limit (Elq), static |
% of Emax |
300 | |||||||||
| Breaking load (Ed) | 300 | ||||||||||
| Deflection at Emax (snom), approx. | mm | < 0.5 | |||||||||
| Weight (G), approx. | kg | 2.4 | |||||||||
|
Protection class according to EN 60 529 (IEC 529) |
IP67 | ||||||||||
|
Material: Measuring element Coating Cable sheath |
Aluminum Silicone rubber PVC |
||||||||||
