Load Cell IPW6C 3-40kg Static Weighing Aluminum weight force sensor 2mv/v C3 C6 for Counting Scale IP67

Name: Load Cell IPW6C 3-40kg Static Weighing Aluminum weight force sensor 2mv/v C3 C6 for Counting Scale IP67
Brand: inntronic
SKU: IPW6C
Rating: 5 (101 reviews)

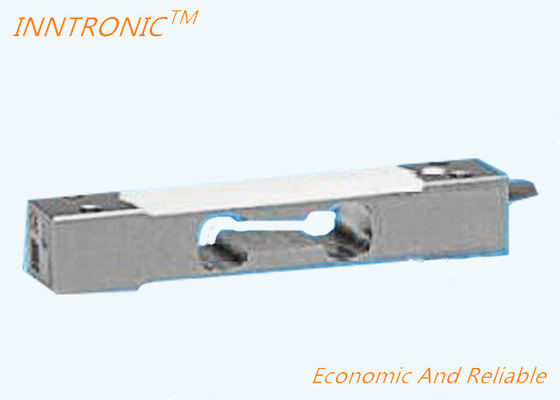

Large Image : Load Cell IPW6C 3-40kg Static Weighing Aluminum weight force sensor 2mv/v C3 C6 for Counting Scale IP67

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IPW6C

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	3kg To 40kg
Output:	2mv/v	Material:	Aluminum Load Cell
Application:	Static Weighing	Interchangeable Beand:	HBM
IP Protection Standard:	IP67	Accuracy Grade:	C3
Non-linearity:	0.0166	Output Impedance:	13025.422
Highlight:	3kg low capacity load cell , 40kg low capacity load cell , Static Weighing aluminum load cell C6

IPW6C 3KG TO 40kg single point load cell aluminum material for Static Weighing OIML C3 C6

40kg Counting Scale Portable Load Cell Sensor For Weight Measurement ODM

Special features

-- Accuracy class C3 with OIML-R60 test report

-- Off center load compensated (OIML R 76)

-- Max. capacities: 3 kg ... 40 kg

-- Degree of protection IP67(according to EN 60 529)

-- Shielded connection cable

-- Optimized for static weighing applications

Optional:

-- Accuracy class C6 with OIML-R60 test report

-- Connection cable in six wire circuit

-- Different cable lengths

− Aligned output, suitable for connectionin parallel

Type		IPW6C
Accuracy class1)		C3; C3MR
Number of load cell intervals (nLC)		3000
Maximum capacity (Emax)2))	kg	3	5	10	15	20	30-	40
Minimum LC verification interval (vmin) Accuracy class C3	g	10	10	20	20	50	50	50
Temperature effect on zero balance (TK0) Accuracy class C3	% v. Cn / 10 K	±0.0233	±0.0280	±0.0280	±0.0186	±0.0350	±0.0233	±0.0350
Minimum LC verification interval (vmin) Accuracy class C3MR	g	0.2	0.5	1	1	2	2	5
Temperature effect on zero balance (TK0) Accuracy class C3MR	% v. Cn / 10 K	±0.0093	±0.0140	±0.0140	±0.0093	±0.0140	±0.0093	±0.0175
Max. platform size	mm	300 x 300
Sensitivity (Cn)	mV/V	2.0±0.2
Zero balance		0±0.12
Temperature effect on sensitivity (TKC)3) Temperature range +20 ... +40℃ [+68 ... +104℉] −10 ... +20℃ [+14 ... +68℉]	% v. Cn / 10 K	±0.0175 ±0.0117
Hysteresis error (dhy)3)	% of Cn	±0.0166
Non-linearity (dlin)3)		±0.0166
Minimum dead load output return (DR)		±0.0245
Off center load error4)		±0.0233
Input resistance (RLC)	Ω	300 ... 500
Output resistance (R0)		300 ... 500
Reference excitation voltage (Uref)	V	5
Nominal range of excitation voltage (BU)		1...12
Insulation resistance (Ris) at 100 VDC	GΩ	> 2
Nominal temp. range (BT)	°C [°F]	−10 ... +40 [+14 ... +104]
Service temp. range (Btu)		−10 ... +50 [+14 ... +122]
Storage temp. range (Btl)		−25 ... +70 [−13 ... +158]
Safe load limit (EL ), at max. 100mm eccentricity	% of Emax	150 100
Lateral load limit (Elq), static	% of Emax	300
Breaking load (Ed)		300
Deflection at Emax (snom), approx.	mm	< 0.5
Weight (G), approx.	kg	0.25
Protection class according to EN 60 529 (IEC 529)		IP67
Material: Measuring element Coating Cable sheath		Aluminum Silicone rubber PVC
