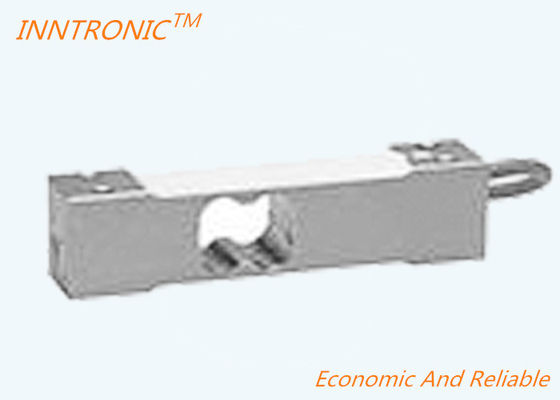

IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67

IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67
IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67

Large Image :  IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IPW2D

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Type: Single Point Load Cell Capacity: 7.2kg To 72kg
Output: 2mv/v Material: Aluminum
Application: Static Weighing Interchangeable Brand: HBM
IP Protection Standard: IP67 Accuracy Grade: C3
Hysteresis Error: 0.0166 Non-linearity: 0.0166
High Light:

7.2kg digital scale load cell

,

72kg digital scale load cell

,

Dynamic Weighing single point load cell

IPW2D 7.2kg to 72kg Single Point Load Cell for dynamic weighing

Dynamic Weighing Single Point Load Cell , Aluminum Material Electronic Load Cell for static weighing

Special features


−  Accuracy class C3 with OIML-R60 test report

−  Max. capacities: 7.2 kg ... 72 kg

−  Off center load compensated(OIML R76)

−  Degree of protection IP67(according to EN 60 529)

−  Shielded connection cable

−  optimized for dynamic weighing applications

Optional:

−  Connection cable in six wire circuit

−  Different cable lengths

−  Aligned output, suitable for

−  Aligned output, suitable for connectionin parallel





Type IPW2D
Accuracy class1) C3; C3MR
Number of load cell intervals (nLC) 3000
Maximum capacity (Emax)2)) kg 7.2 12 18 36 72

Minimum LC verification interval (vmin)

Accuracy class C3

g 1 2 5 10 20

Temperature effect on

zero balance (TK0)

Accuracy class C3



% v.

Cn /

10 K



±0.0194 ±0.0233 ±0.0389 ±0.0389 ±0.0389

Minimum LC verification interval (vmin)

Accuracy class C3MR

g 0.5 1 2 5 10

Temperature effect on

zero balance (TK0)

Accuracy class C3MR

% v.

Cn /

10 K



±0.0097 ±0.0116 ±0.0155 ±0.00194 ±0.0194
Max. platform size mm 380 x 380
Sensitivity (Cn) mV/V 2.0±0.2
Zero balance 0±0.1

Temperature effect on

sensitivity (TKC)3)

Temperature range

+20 ... +40℃ [+68 ... +104℉]

−10 ... +20℃ [+14 ... +68℉]

% v.

Cn /

10 K



±0.0175

±0.0117

Hysteresis error (dhy)3) % of Cn ±0.0166
Non-linearity (dlin)3) ±0.0166
Minimum dead load output return (DR) ±0.0166
Off center load error4) ±0.0233
Input resistance (RLC) Ω 300 ... 500
Output resistance (R0) 300 ... 500
Reference excitation voltage (Uref) V 5
Nominal range of excitation voltage (BU) 1 ... 12
Insulation resistance (Ris) at 100 VDC > 2
Nominal temp. range (BT)

°C

[°F]

−10 ... +40 [+14 ... +104]
Service temp. range (Btu) −10 ... +50 [+14 ... +122]
Storage temp. range (Btl) −25 ... +70 [−13 ... +158]

Safe load limit (EL ), at max.

100mm eccentricity

% of

Emax

150

160

Lateral load limit (Elq), static

% of

Emax

300
Breaking load (Ed) 300
Weight (G), approx. kg 0.25

Protection class according to

EN 60 529 (IEC 529)

  IP67

Material: Measuring element

Coating

Cable sheath



Aluminum

Silicone rubber

PVC



IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67 0IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67 1IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67 2


IPW2D 72kg Dynamic Weighing sensor Single Point weight Load Cell 2mv/v for Digital Scale Aluminum IP67 3
