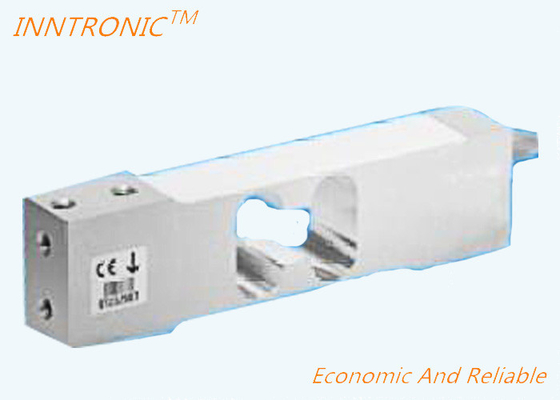

IN-SP4M 200kg Single Point Aluminum weighing Load Cell Explosion Proof For weight scale 2mv/v IP67

IN-SP4M 200kg Single Point Aluminum weighing Load Cell Explosion Proof For weight scale 2mv/v IP67
IN-SP4M 200kg Single Point Aluminum weighing Load Cell Explosion Proof For weight scale 2mv/v IP67

Large Image :  IN-SP4M 200kg Single Point Aluminum weighing Load Cell Explosion Proof For weight scale 2mv/v IP67

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-SP4M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Pattern: Single Point Load Cell Capacity: 1 3 5 7 10 15 20 30 50 75 100 150 200kg
Output: 2mv/v Material: Aluminum Load Cell
Application: Multi Range Interchangeable Brand: HBM
IP Protection Standard: IP67 Accuracy Grade: C3
Non-linearity: 0.0166 Sensitivity: 150*25.4*39
High Light:

platform load cell

,

low capacity load cell

ISP4M 1 to 200kg Single Point Load Cell for multi range applications

Good quality and long life
Special features

−  Accuracy class C3MR and
   C6MR with OIML-R60 test report
−  Off center load compensated
    (OIML R 76)
−  Degree of protection IP67
    (according to EN 60 529)
−  Shielded connection cable
−  Suitable for multi range

applications

Optional:
−  Explosion proof versions
−  Different cable lenghts
−  Aligned output, suitable for
    connection in parallel





Type ISP4M
Accuracy class1) C3MR
Number of load cell intervals (nLC) 3000
Maximum capacity (Emax)2)) kg 1 3 5 7 10 15 20 30 50 75 100 150 200

Minimum LC verification interval (vmin)

Accuracy class C3

g 0.1 0.2 0.5 0.5 1 1 2 2 5 5 10 10 20

Temperature effect on

zero balance (TK0)

Accuracy class C3



% v.

Cn /

10 K



±0.0140 ±0.0093 ±0.0140 ±0.0100 ±0.0140 ±0.0093 ±0.0140 ±0.0093 ±0.0140 ±0.0093 ±0.0140 ±0.0093 ±0.0140
Max. platform size mm 300 x 300 450 x 450 600 x 600
Sensitivity (Cn) mV/V

1.8 +15 %; −10 % (Option 6: A1 = 1.8 mV/V±0.1 %)

2.0±10 % (Option 6: A = 2mV/V±0.1 %)

Zero balance 0±0.1

Temperature effect on

sensitivity (TKC)3)

Temperature range

+20 ... +40℃ [+68 ... +104℉]

−10 ... +20℃ [+14 ... +68℉]

% v.

Cn /

10 K



±0.0175

±0.0117

Hysteresis error (dhy)3) % of Cn ±0.0166
Non-linearity (dlin)3) ±0.0166
Minimum dead load output return (DR) ±0.0166
Off center load error4) ±0.0233
Input resistance (RLC) Ω 300 ... 500
Output resistance (R0) 300 ... 500 (Option 6: A = 410 Ω±0.2 Ω)
Reference excitation voltage (Uref) V 5
Nominal range of excitation voltage (BU) 1...12
Max. excitation voltage 15
Insulation resistance (Ris) at 100 VDC > 2
Nominal temp. range (BT)

°C

[°F]

−10 ... +40 [+14 ... +104]
Service temp. range (Btu) −10 ... +50 [+14 ... +122]
Storage temp. range (Btl) −25 ... +70 [−13 ... +158]

Safe load limit (EL ), at max.

100mm eccentricity

% of

Emax

150
Lateral load limit (Elq), static

% of

Emax

300
Breaking load (Ed) 300
Deflection at Emax (snom), approx. mm < 0.5 < 0.3 < 0.25
Weight (G), approx. kg 0.45

Protection class according to

EN 60 529 (IEC 529)

  IP67

Material: Measuring element

Coating

Cable sheath



Aluminum

Silicone rubber

PVC





IN-SP4M 200kg Single Point Aluminum weighing Load Cell Explosion Proof For weight scale 2mv/v IP67 0




IN-SP4M 200kg Single Point Aluminum weighing Load Cell Explosion Proof For weight scale 2mv/v IP67 1
