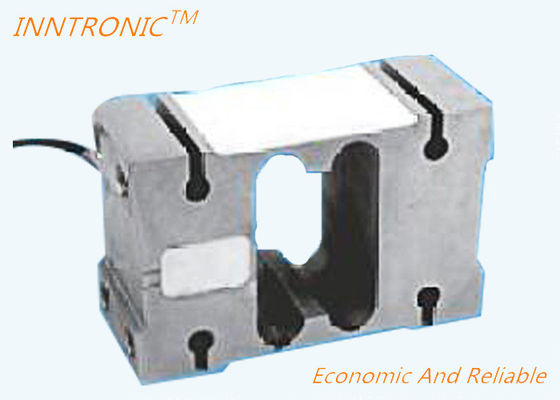

Load Cell IN-ILGB 750kg C3 Alloy Steel Single Point weight force sensor IP65 for 1.2*1.2m Platform bench scale 2mv/v

Large Image : Load Cell IN-ILGB 750kg C3 Alloy Steel Single Point weight force sensor IP65 for 1.2*1.2m Platform bench scale 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-ILGB

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	50kg 100kg 150kg 200kg 250kg 300kg 500kg 750kg 1t 2t
Output:	2mv/v	Material:	Alloy Steel
Application:	All Kinds Of Platform Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP65	Accuracy Grade:	C3
Cable Length:	3m	Size:	1564475
Highlight:	750kg Alloy Steel steel load cell , Single Point steel load cell , accurate load cell IP65

**IN-ILGB 50kg to 2t single point load cell aluminum material for platform scale 1.2*1.2m**

Alloy Steel Single Point Load Cell , 1.2*1.2m Platform Load Cell IP65 Protection for Platform scale

products detials

accuracy grade:C3
Sensitivity:2.0+0.2mV/V
Non-linearity:±0.03%F.S

Rated load	50,100,150,200,250,300,500,750kg,1t,2t	Nomina Temp Range	-10~+40℃
Accuracy class	0.03	Operating Temp Range	-30~+70℃
Sensitivity	2.0+0.2mV/V	Safe load limit	150%F.S
Non-linearity	±0.03%F.S	Breaking load	200%F.S
Hysteresis error	±0.03%F.S	Nominal of range excitation	10～12V DC
Creep(30min)	±0.02%F.S	Protection Class	IP65
TC O	±0.02%F.S/10℃	Material	Alloy Steel
TC SPAN	±0.02%F.S/1O℃	Cable	Length=3m
Input resistance	400±20Ω	Max.platform size	400×400mm(50~200kg)
Output resistance	352±5Ω		600×800mm(250~750kg)
Insulation resistance	≥5000MΩ		1000×1000mm(1~2t)

Load Cell IN-ILGB 750kg C3 Alloy Steel Single Point weight force sensor IP65 for 1.2*1.2m Platform bench scale 2mv/v 0

Load Cell IN-ILGB 750kg C3 Alloy Steel Single Point weight force sensor IP65 for 1.2*1.2m Platform bench scale 2mv/v 1
