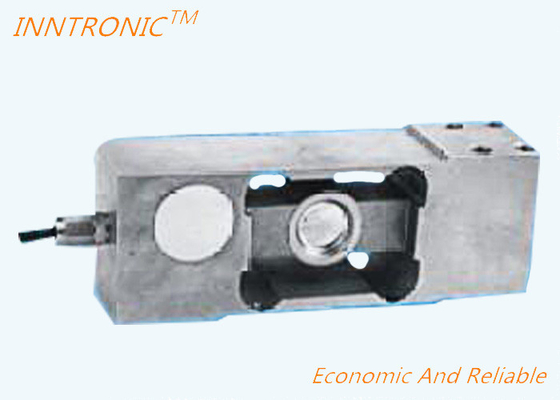

Load Cell IN-ILEC nickel-plated IP67 alloy steel Platform scale weight force sensor 1000kg 2.0±0.2mv/v

Name: Load Cell IN-ILEC nickel-plated IP67 alloy steel Platform scale weight force sensor 1000kg 2.0±0.2mv/v
Brand: inntronic
SKU: IN-ILEC
Rating: 4.6 (156 reviews)

Large Image : Load Cell IN-ILEC nickel-plated IP67 alloy steel Platform scale weight force sensor 1000kg 2.0±0.2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-ILEC

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Stainless Steel Single Point Load Cell	Capacity:	100kg To 1000kg
Output:	2mv/v	Material:	Nickel-plated Alloy Steel OR Stainless Steel
Application:	Platform Scale AND Packing Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP67	Accuracy Grade:	C3
Cable Length:	3m	Size:	1764564
High Light:	IP67 stainless steel platform load cell , platform load cell 100kg , High Precision Load Cell 1000kg

IN-ILEC 100kg to 1000kg stainless steel Single Point Load Cell for Platform scale

Product Details

FEATURES:

● Capacity 100kg to 1000kg

● Strong resistance to partial loading

● High precision

● OIML C3

● Compact structure

APPLICATION:

● Platform scale

● Packing scale

Outline Dimension:
Rated capacity	L	L1	L2	L3	W	W1	H	H1	H2	T
100,150,200,250,300,500,750,1000kg	176	42	19	6	45	30	64	62	18	M8

SPECIFICATION:
Rated capacity: 100kg to1000kg	Maximum safe overload:150% OF R.C
Rated output:2.0±0.2mv/v	Ultimate safe overload:300% OF R.C
Accuracy class:0.03	Recommended Excitation:10V DC
Non-linearity:±0.03%F.S	Maximum Excitation:15V DC
Hysteresis error:±0.03%F.S	Environment protection: IP67
Non-repeatability:±0.02% F.S	Input impedance: 400±20Ω
Creep error(30minutes):±0.03%F.S	Output impedance: 352±3Ω
Zero balance: ±1% %F.S	Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on zero: ±0.02% F.S	Material: nickel-plated alloy steel
Temperature effect on output: ±0.02% F.S	Cable length: 3meter, diameter 5mm
Compensated temperature range: -10 to +40℃	Max. platform size:600x800mm
Operating temperature range: -30 to +70℃

Load Cell IN-ILEC nickel-plated IP67 alloy steel Platform scale weight force sensor 1000kg 2.0±0.2mv/v 0

Load Cell IN-ILEC nickel-plated IP67 alloy steel Platform scale weight force sensor 1000kg 2.0±0.2mv/v 1
