Product Details:
Payment & Shipping Terms:
|
| Pattern: | Single Point Load Cell | Capacity: | 100,150,200,300,500,800kg |
|---|---|---|---|
| Output: | 2mv/v | Material: | Aluminum |
| Application: | Platfrom Scale | Interchangeable Brand: | HBM |
| IP Protection Standard: | IP65 | Accuracy Grade: | C3 |
| Cable Length: | 3m | Recommend Excitation: | 10DC |
| High Light: | IP65 Aluminum Single Point Load Cell,800kg Aluminum Single Point Load Cell,digital load cell With 3m Cable |
||

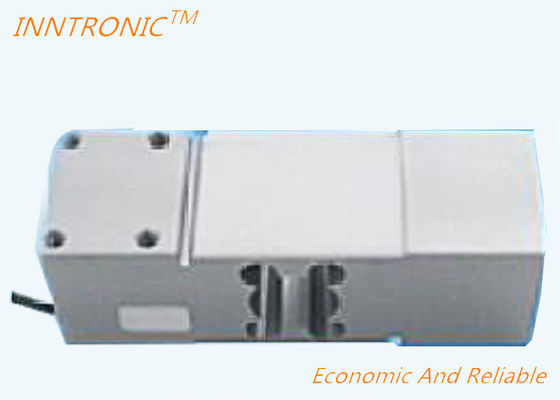

C3 IP65 High Precision Load Cell 3m Cable With Resistance To Partial Load Ability for platfrom scale
product information:
| Rated load | 100,150,200,300,500,800kg | ||
| Total error | C3 | Operating Temp Range | -20~+50℃ |
| Sensitivity | 2.0±0.2mV/V | Safe load limit | 150%F.S |
| Zero balance | ±3%Emax | Breaking load | 300%F.S |
| Creep(30min) | 166ppm | Recommend excitation | 10DC |
| TC O | 17.5ppm/10℃ | Max excitation | 15V DC |
| TC SPAN | 15ppm/1O℃ | Protection Class | IP65 |
| Input resistance | 404±15Ω | Material | Aluminum |
| Output resistance | 350±3Ω | Cable | Length=3m |
| Insulation resistance | ≥2000MΩ |
Diameter:Φ5mm |
| ±3%Emax |
