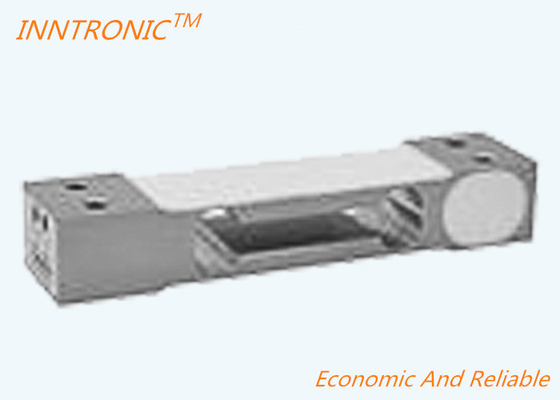

IN-1022 35kg C3 C6 Single Point Weight Force Sensor Aluminum Load Cell IP66 for Counting Scale

IN-1022 35kg C3 C6 Single Point Weight Force Sensor Aluminum Load Cell IP66 for Counting Scale
IN-1022 35kg C3 C6 Single Point Weight Force Sensor Aluminum Load Cell IP66 for Counting Scale

Large Image :  IN-1022 35kg C3 C6 Single Point Weight Force Sensor Aluminum Load Cell IP66 for Counting Scale

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-1022

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Pattern: Single Point Load Cell Capacity: 3kg 5kg 6kg 10kg 15kg 35kg
Output: 2mv/v Material: Aluminum
Application: Counting Scale,electronic Balance Interchangeable Brand: VISHAY TEDEA 1022 Load Cell
IP Rating: IP 66 Accuracy Grade: C3
Creep: <±0.005% Size: 130*30*22mm
Highlight:

C3 precision single point weight sensor

,

single point weight sensor 15kg

,

aluminum load cell 35kg

IN-1022 3kg 5kg 6kg 10kg 15kg 35kg Single Point Load Cell for price computer scale

replace VISHAY TEDEA 1022 3kg 5kg 6kg 10kg 15kg 35kg single point load cell for precision counting scale



Good quality with competitive price

Special Features

  •  Up to 60,000 divisions shor trem precisionAt romm temperature
  •  Off-center load compensated
  •  Suitable for price computer scale,countingScale and weighing scales,etc.



Dimensions
Rate Capacity L L1 L2 L3 W W1 H T
kg/mm
3-60   130 80 12 106 30 15 22 M6
lb/inches(conversion of above dimensions)
6.6-132.3 5.12 3.15 0.47 4.17 1.18 0.59 0.87 M6



SPECIFIATIONS
Full Scale Output 2.0±10%mV/V Recommed Excitation 10V(15V Maximnm)
Zero Balance ±0.02mV/V Reference Max.Platform Size 400*400mm
Nonlinearity <±0.017%
Repetability <±0.017% Insulation Resisitance >2[50V DC]GΩ
Hysteresis Error <±0.017% Nominal Temperature Range -10℃to40℃/14℉to104℉
Creep in 30 min <±0.008%<±0.012% Safe Overload 150% of full scale
Creep in 20 min <±0.0033%<±0.005% Breaking Overload 300% of full scale
Input Resistance 415Ω±15 IP Rating IP66
Output Resistance 350Ω±3 Cable Color Code Exc+:Red;Exc-Black;Sig+Green;Sig-:White Shidld Bare
Element Materia Aluminum


 IN-1022 35kg C3 C6 Single Point Weight Force Sensor Aluminum Load Cell IP66 for Counting Scale 0IN-1022 35kg C3 C6 Single Point Weight Force Sensor Aluminum Load Cell IP66 for Counting Scale 1



A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.

At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.

Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.

If you are looking for a high-quality load cell, it is important to choose a reputable supplier. Look for a supplier that offers a wide range of load cells, and that has a proven track record of providing reliable and accurate products. With the right load cell, you can ensure that your weight measurements are always accurate and reliable, helping you to improve your processes and increase efficiency.
