Product Details:
Payment & Shipping Terms:
|
| Pattern: | Single Point Load Cell | Capacity: | 4kg 5kg 8kg 10kg 15kg 20kg |
|---|---|---|---|
| Output: | 2mv/v | Material: | Aluminum |
| Application: | Eletronic Peicing Scale, Electronic Package Scale | Interchangeable Brand: | HBM |
| IP Protection: | IP66 | Accuracy: | OIML R60 C3 |
| Nonlinearity: | 0.017% | Size: | 80*20*50 |
| High Light: | 5kg load cell for weighing machine,8kg load cell for weighing machine,IP66 single point load cell |
||

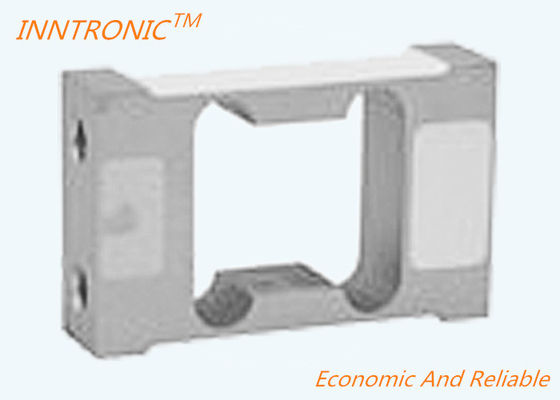

IN-651F 4 5 8 10 15 20kg Single Point Load Cell for eletronic peicing scale
IP66 Protection Single Point Load Cell Easy Installation For Eletronic Peicing Scale
capacity:4kg 5kg 8kg 10kg 15kg 20kg
| Dimensions | |||||||
| Rate Capacity | L | L1 | W | H | H1 | T | |
| kg/mm | |||||||
| 4-20 | 80 | 60 | 20 | 50 | 28 | M8 | |
| lb/inches(conversion of above dimensions) | |||||||
| 8.82-44.09 | 3.15 | 2.36 | 0.79 | 1.97 | 1.1 | M8 | |
| SPECIFIATIONS | |||||
| Full Scale Output | 1.0±20%mV/V | Recommed Excitation | 10V(15V Maximnm) | ||
| Zero Balance | ±0.04mV/V | Reference Max.Platform Size | 200*200mm | ||
| Nonlinearity | <±0.017% | Insulation Resisitance | >2[50V DC]GΩ | ||
| Repetability | <±0.017% | Nominal Temperature Range | -10℃to40℃/14℉to104℉ | ||
| Hysteresis Error | <±0.017% | Safe Overload | 150% of full scale | ||
| Creep in 30 min | <±0.02% | Breaking Overload | 300% of full scale | ||
| Input Resistance | 405Ω±10 | IP Rating | IP66 | ||
| Output Resistance | 350Ω±3 | Cable Color Code | Exc+:Red;Exc-Black;Sig+Green;Sig-:White Shidld Bare | ||
| Element Materia | Aluminum | ||||
