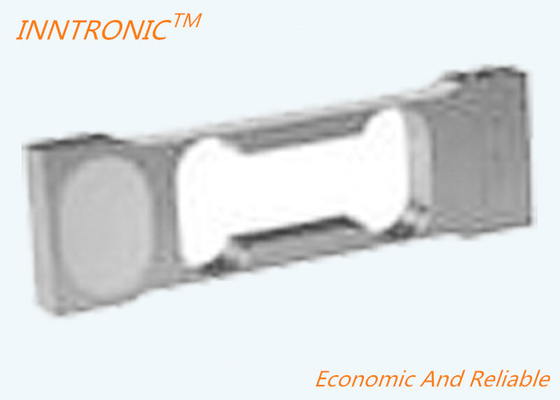

Load Cell IN-SPL 3 Kg C3 Aluminum Single Point weight force sensor 2mv/V IP65 For Electronic Balance 2mv/v

Large Image : Load Cell IN-SPL 3 Kg C3 Aluminum Single Point weight force sensor 2mv/V IP65 For Electronic Balance 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-SPL

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Type:	Single Point Load Cell	Capacity:	0.2 To 3 Kg
Output:	2mv/v	Material:	Aluminum Load Cell
Application:	IP65 Electronic Balances	Interchangeable Brand:	HBM
IP Protection Standard:	IP65	Accuracy Grade:	C3
Non-linearity:	0.0150	Size:	1101033
Highlight:	0.2kg Aluminum Single Point Load Cell , 3kg Aluminum Single Point Load Cell , 2mv weighing machine using load cell

ISPL 0.2 to 3 kg Single Point Load Cell for electronic balances

Small Structure Low Capacity Load Cell 0.2 To 3kg For Electronic Balances with high accuracy

Special features

− Small dimensions

-- Max.capacities:200g...3kg

-- Small weigh range application

-- Shield connection cable

Type		ISPL
Maximum capacity (Emax)	g	200	300	600	1000	1500	3000
Temperature effect on zero balance (TK0)	% v. Cn / 10 K	±0.03
Sensitivity (Cn)²	mV/V	0.8 to 1.0
Zero balance		±0.05
Temperature effect on sensitivity (TKC)3) Temperature range +20 ... +40℃ [+68 ... +104℉] −10 ... +20℃ [+14 ... +68℉]	% v. Cn / 10 K	±0.020
Hysteresis error (dhy)3)	% of Cn	±0.0150
Non-linearity (dlin)3)		±0.0150
Minimum dead load output return (DR)		±0.020
Off center load error4)		±0.0233
Max.platform size	mm	200X200
Input resistance (RLC)	Ω	380±38
Output resistance (R0)		380±38
Reference excitation voltage (Uref)	V	5
Nominal range of excitation voltage (BU)		1...15
Max. excitation voltage		15
Insulation resistance (Ris) at 100 VDC	GΩ	> 2
Nominal temp. range (BT)	°C [°F]	−10 ... +40 [+14 ... +104]
Service temp. range (Btu)		−10 ... +50 [+14 ... +122]
Storage temp. range (Btl)		−25 ... +70 [−13 ... +158]
Safe load limit (EL ), at max. 100mm eccentricity	% of Emax	150
Lateral load limit (Elq), static	% of Emax	300
Breaking load (Ed)		300
Deflection at Emax (snom), approx.	mm	< 0.5
Material		Aluminum
Weight (G), approx.	kg	0.07
Protection class according to EN 60 529 (IEC 529)		IP65
Strain Gage requirement		Modco/PEEK
