Product Details:
Payment & Shipping Terms:
|
| Type: | Stainless Steel Single Point Load Cell | Capacity: | 100kg, 250, 300, 500, 800, 1000 Kg |
|---|---|---|---|
| Output: | 2mv/v | Material: | Stainless Steel 17-4PH |
| Application: | Food Check Weigher, Platform Scale | Interchangeable Brand: | HBM Load Cell, Ricelake Load Cell |
| IP Protection Standard: | IP68 | Accuracy Grade: | C3 |
| Cable Length: | 3m | Size: | 174*45*62 |
| Highlight: | platform load cell,weighing machine using load cell |
||

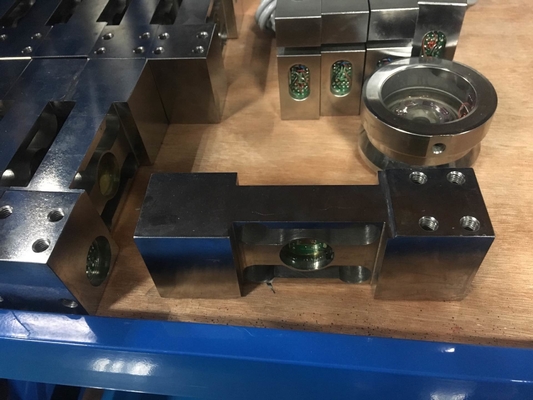

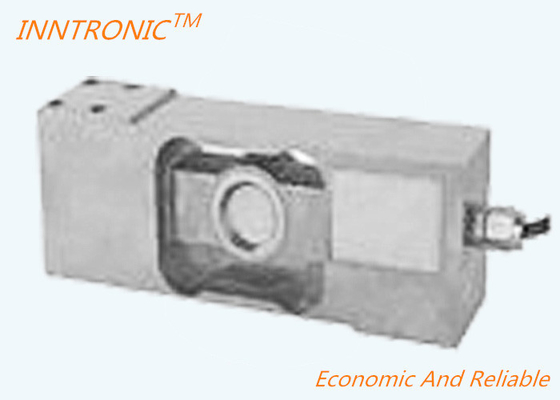

IN-SSP01 Stainless steel single point load cell
Good quality with competitive price
Advantages:
| Emax[kg] | 1000,1500 | 2000,2500 |
| M10 | M12 |
| Unit | Parameter | ||||||
| Accuracy class | 0.03,0.05 | ||||||
| Maximum capacity (Emax) | kg | 100kg, 250, 300, 500, 800, 1000 | |||||
| Sensitivity (Cn) / Zero balance | mV/V | 2±0.2/0 ± 0.1 | |||||
| Temperature effect on zero balance (TKO) | % of Cn/10K | ± 0.0175 | |||||
| Temperature effect on sensitivity (TKc) | % of Cn/10K | ± 0.0175 | |||||
| Hysteresis error (dhy) | ± 0.02 | ||||||
| Non-linearity(dlin) | % of Cn | ± 0.0270 | |||||
| Creep(dcr) over 30 min. | % of Cn | ± 0.0250 | |||||
| Eccentric error | ± 0.0233 | ||||||
| Input (RLC) &Output resistance (Ro) | 400±20 & 352 ±3 | ||||||
| Nominal range of excitation voltage (Bu) | 5-15VDC | ||||||
| Insulation resistance (Ris) at50Vdc | > 5000 | ||||||
| Service temperature range (Btu) | -20...+50 | ||||||
Safe load limit (EL) & Breaking load(Ed) |
% of Emax | 150 & 200 | |||||
| Protection class according to EN 60 529 (IEC 529) | IP67 | ||||||
| Material :Measuring element |
Alloy steel Stainless Steel | ||||||
| Maximum capacity (Emax) | kg kg | 250 | 300 | 500 | 800 | 1000 | |
| Min. load cell verification inter(vmin) | mm | 0.05 | 0.1 | 0.1 | 0.2 | 0.2 | |
| Maximum platform size | mm | 600*500 | |||||
| Deflection at Emax (snom) | < 0.5 | ||||||
| Weight(G),appr.ox | kg | 1 .8 | |||||
| cable diameter: Ø5mm Length | m | 3 | |||||
| Mounting:Cylindrical head |
10M-10.0(1T~1.5T), M12-10.9(2T~2.5T) | ||||||
| Tightening torque |
N.m | 1T-1.5T:68N.m, 2T-2.5T: 100N.m | |||||
