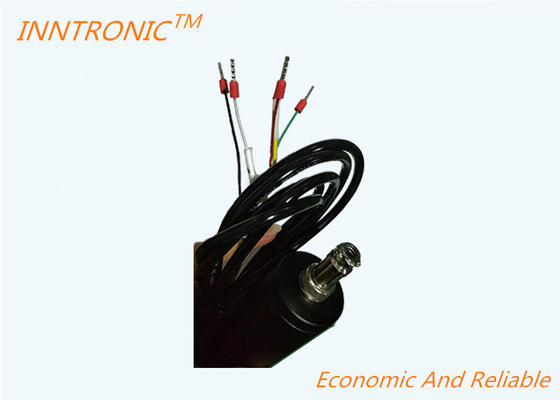

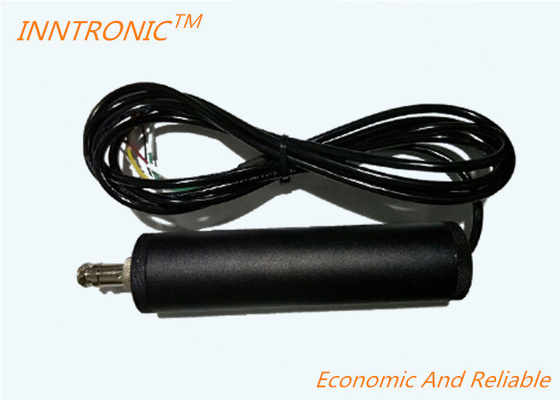

HBM BLACK Corrosion resistant aluminum Digital Measuring Gauge chain 24bit PW10A Weight load cell Indicator Controller RS485 4-20mA IP65

Large Image : HBM BLACK Corrosion resistant aluminum Digital Measuring Gauge chain 24bit PW10A Weight load cell Indicator Controller RS485 4-20mA IP65

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	Digital measuring chain

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Digital Measuring Chain	Output:	RS485 4-20mA
Application:	HBM PW10A, PW2D,PW6D,SP4M,SPL And PW4MC3	Size:	Length Of AAD RS485 Wire 3m
Model no.:	1-AAD-MC-1	Power supply:	≤1.5
Accuracy:	24bit	Degree Of Protection EN 60529 (electronics):	IP65
Housing Material Of The Electronic:	Corrosion Resistant Aluminum
Highlight:	HBM Weighing Indicator Controller , Digital Weighing Indicator Controller , RS485 digital measuring gauge

Digital measuring chain Load Cell Accessories HBM PW10A, PW2D,PW6D,SP4M,SPL and PW4MC3

High Dynamic Response Digital Measuring Gauge Energy Saving For HBM PW10A RS485 4-20mA

Special Features:

high dynamic response
small size, the dightal input signal
fast digital filtering
high accuracy

application:

suitable for HBM PW10A, PW2D,PW6D,SP4M,SPL and PW4MC3

Specification

Type		1-AAD-MC-1
Voltage supply
Operating voltage UB1 (DC)	V	+12,+30
Power consumption	W	≤1.5
Measurement signal resolution (1 HZ) Filter	Bit	20
Date rate	1/S	4,1200
Adjustable digital filter cut-off frequency	Hz	80, 0.0625
Baud Rate (RS485 interface)	baud	1200；2400；4800；9600；19200
		38400；57600；115200
Max. Number of bus nodes	m	32
Asynchronous serial interface		500
Trigger input
Permissible input voltage	V	0,+12
Low level	V	＜1
High level	V	＞4
Input resistance	K Ω	10
Cable length between AAD and load cell	mm	300
Cable length of AAD RS485 wire	m	3
Nominal (rated) ambient temperature range		-10~+40
Operating temperature	℃	-10~+50
Storage temperature		-25~+75
Housing dimension of the e lectronic (LBH)	mm	1183418
Degree of protection EN 60529 (electronics)		IP65
Housing material of the electronic		Corrosion resistant aluminum

Application

	capacity	Max platform size	Dimension	Material	Accuracy
PW10A	50/100/150/200/250/300kg	600*500	150*38	Aluminum	C3/C3MR
PW2D	7.2/12/18/36/72	380*380	130*25.4	Aluminum	C3MR
PW6D	3/5/10/15/20/30/40kg	300*300	130*25.4	Aluminum	C3/C3MR
SP4M	1/3/5/7/10/15/20/30/50/75/100/ 150/200kg	300300/ 450450/ 600*600	150*25.4	Aluminum	C3/C3MR
SPL	200/300/600/ 1000/1500/3000g	200*200	174*65	Aluminum
PW4MC3	300/500/2000/ 3000g	200*200	70*22	Aluminum	C3
