Product Details:
Payment & Shipping Terms:
|
Pattern: | Portable Truck Scale Load Cell | Capacity: | 1t To 300t |
---|---|---|---|
Output: | 2mv/v | Material: | Alloy Steel |
Application: | Portable Truck Scale,axle Truck Scale | Interchangeable Brand: | HBM |
IP Protection Standard: | IP 67 | Accuracy Grade: | C3 |
Cable Length: | 2m | Size: | 5000KG:diameter:54mm Height:3mm |
High Light: | 1t Column Load Cell,300t Column Load Cell,portable truck scale load cells |

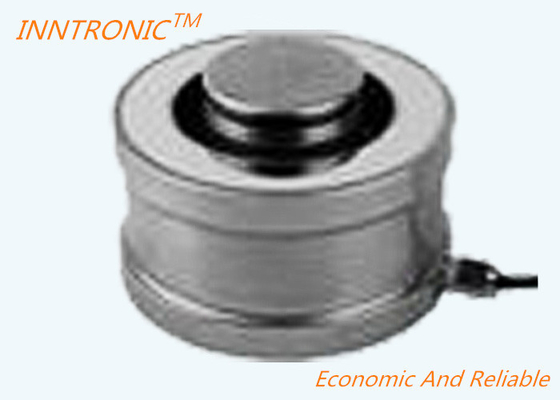

IN-RTN 1T to 300t compression load cell for portable truck scale
300t Round Load Cell Strong Structure With Fast Dynamic Response for truck scale 2mv/v
Alloy steel load cell
Capacity from 1,000kg...300,000kg
PARAMETER | UNIT | TECHNICAL DATA |
Rated capacity (Emax) | kg | 5,000/10,000/25,000/50,000/100,000 |
Accuracy class | 0.3 | |
Sensitivity | mV/V | 2.5 10% |
Zero balance | mV/V | 0.005 |
Creep over 30min | % | 0.1 |
Temperature effect on zero | %/ | 0.046 |
Temperature effect on output | %/ | 0.016 |
Hysteresis | % | 0.32 |
Linearity deviation | % | 0.32 |
Repeatability | % | 0.05 |
Nominal temperature range | ![]() |
-10 to +40 |
Service temperature range | ![]() |
-30 to +70 |
Limit load | % of R.C. | 150 |
Break load | % of R.C. | 300 |
Nominal excitation | V | 5~12 |
Max. excitation | V | 15 |
Input impedance | ![]() |
400 25 |
Output impedance | ![]() |
350 3 |
Insulation resistance | M | >2000 |
Cable length | M | 2 |
Cable type | 4 conductors, Braid Shielded, Black PVC Jacket | |
Color code | +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht | |
Construction | Alloy steel | |
Protection class to IEC529 | IP 67 |
MAX.CAP | A | B | C | D | E | F | G | H | I | J | T | T1 | SR |
kg/mm | |||||||||||||
5000 | 54 | 9.5 | 24 | 4 | 33 | 27 | 13 | 3 | 10 | 3 | ф3.2 | ф6Depth3 | 60 |
10000 | 63.6 | 13.5 | 26 | 4 | 41 | 35 | 16 | 3 | 13.8 | 4 | ф4.2 | ф7.2Depth5 | 100 |
25000 | 75.9 | 20.3 | 38.1 | 4.6 | 49 | 43 | 19 | 4 | 20.5 | 5 | ф4.8 | ф7Depth4.8 | 150 |
50000 | 105 | 30 | 53 | 7 | 60 | 54 | 24 | 5.8 | 31 | 5 | ф6.5 | ф11Depth7 | 250 |
100000 | 123 | 43 | 95 | 15 | 80 | 74 | 31 | 12.5 | 44 | 7 | ф10.5 | ф15Depth12 | 380 |
