Load Cell TC013 C3 Shear Beam Alloy steel Mini weighing force Sensor replace HBM for silo scale 2mv/v

Name: Load Cell TC013 C3 Shear Beam Alloy steel Mini weighing force Sensor replace HBM for silo scale 2mv/v
Brand: inntronic
SKU: TC013
Rating: 4.8 (186 reviews)

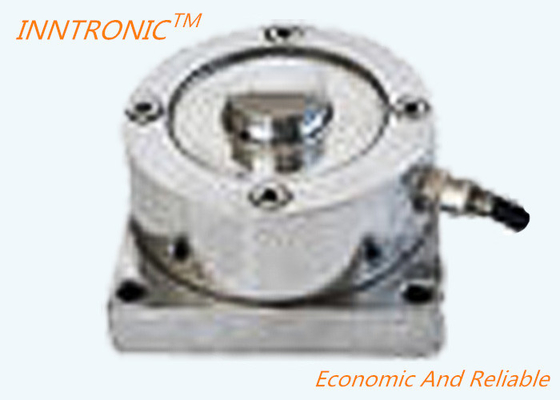

Large Image : Load Cell TC013 C3 Shear Beam Alloy steel Mini weighing force Sensor replace HBM for silo scale 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	TC013

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Delivery Time:	15-30days
Payment Terms:	T/T
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Pattern:	Silo Scale Load Cell	Capacity:	0.5t To 100t
Output:	2mv/v	Materal:	Alloy Steel Load Cell
Application:	Silo Scale	Interchangeable Brand:	HBM
7.IP Protection Standard:	IP68	Accuracy Grade:	C3
Cable Length:	9m	Size:	0.5t: Diameter:110mm Height:53.8mm
High Light:	High Motion Shear Beam Load Cell , Shear Beam Load Cell Strong Resistance , miniature load cell sensor 120mm

TC013 0.5t to 100t Tension and compression silo load cell for silo scale

High Motion Action Silo Load Cells 120*25.5*45 Strong Resistance To Partial Loading for silo scale

Good quality and long life

Specifications:

Rated output(mv/v): 2.00±0.005 4.00±0.005
Safe Overload: 120% FS
Excitation Voltage: 10V(DC/AC)
Input resistance(Ω): 385±15765±15
Output resistance(Ω):350±3 700±5
Zero Balance: ±1.00% FS
Nonlinearity: ±0.03% FS.
Hysteresis: ±0.03%FS
Repeatablity: ±0.02% FS.
Creep(30minutes): ±0.02% FS.
Compensated temperature range: -10℃——+50℃
Operating Temperature Range:-20℃——+60℃
Temperature effect on zero: ±0.02%FS/10℃
Temperature effect on output:±0.02%FS/10℃
Insulation Resistance:≥5000MΩ
Cable Color code:+Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
Cable:Φ6×9m

material:

Alloy steel load cell

capacity:

0.5t to 100t load cell

Capacity		Size mm
KIb	t	A	Ф	Ф1	Ф2	H	H1	H2	B1*B2	C1*C2	SR
1-15	0.5-7.5	88.9	104.7	34	9.0	53.8	15	31.8	110*110	86*86	80
25-50	10-25	101.6	120.7	38.9	11.0	77.8	24	41.1	126*126	106*106	91.3
100	50	116.8	140	50.4	18.0	86.2	29	50.8	150*150	120*120	105.6
150-200	60-100	162.0	200	76.0	26.0	125.0	42	70	240*240	190*190	200.0
