Product Details:
Payment & Shipping Terms:
|
| Pattern: | Compression Silo Load Cell | Capacity: | 125N, 750N |
|---|---|---|---|
| Output: | 2mv/v | Material: | Stainless Steel |
| Application: | Paper Coating Machine | Interchangeable Brand: | HBM |
| Accuracy Grade: | C3 | Cable Length: | 8m |
| Size: | 125N：diameter:175mm, Height:65 | ||
| Highlight: | 125N cantilever type load cell,750N cantilever type load cell,low profile load cell Low Profile |
||

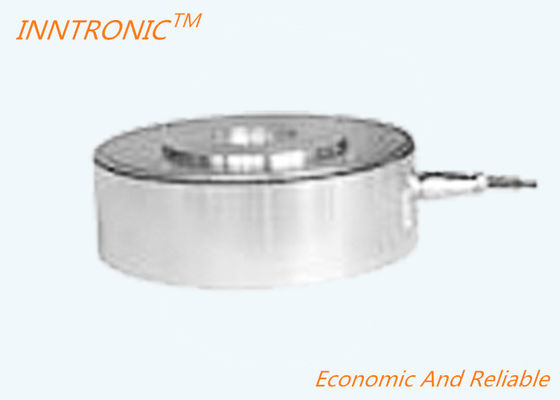

125N 750N Low Profile Load Cell Delicate Structure For Paper Coating Machine Interchangeable brand HBM
special features :
| Items | UNIT | TECHNICAL DATA |
| Rated capacities(Emax) | N | 125, 750 |
| Sensitivity | mV/V | 1.8±0.1 |
| Total error | F.S | ≥0.3% |
| Creep error(30min) | F.S | ±0.1% |
| Zero balance | F.S | ±1% |
| TCO | F.S/℃ | ±0.05% / 10 |
| TC SPAN | F.S/℃ | ±0.05% / 10 |
| Input impedance | Ω | 400±50 |
| Output impedance | Ω | 352±3 |
| Insulation impedance | MΩ | ≥2000 |
| Temperature range, operating | ℃ | -30~ +70 |
| Maximum safe overload | F.S | 120% |
| Ultimate overload | F.S | 200% |
| Excitation, recommend | V | 10-12V DC |
| Excitation, maximum | V | 15V DC |
| Protection class | IP67 | |
| Construction | Stainless steel | |
| Cable | m | Length: 8 |
| mm | Diameter: φ5 | |
| Wiring |
Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White) |
