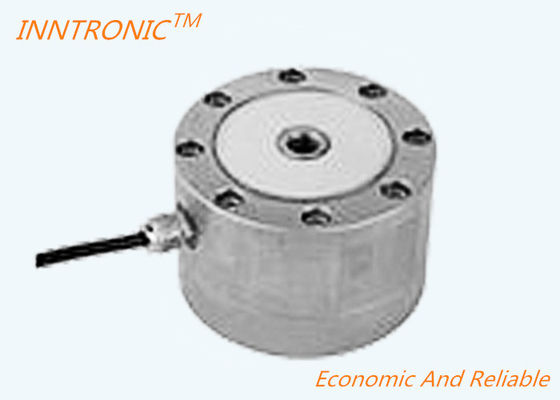

2mv/V 20t Round Mechanical Low Profile Load Cell 12m Cable For Silo Scale

large.img.alt
small.img.alt

Large Image :  2mv/V 20t Round Mechanical Low Profile Load Cell 12m Cable For Silo Scale

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-LFSC

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Delivery Time: 15-30days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Detailed Product Description
Pattern: Tension And Compression Load Cell Capacity: 1t, 2t, 3t, 5t, 10t, 20T
Output: 2mv/v Material: Alloy Steel
Application: Silo Scale Interchangeable Brand: HBM
IP Protection Standard: IP67 Accuracy Grade: C3
Cable Length: 12m Size: 1t:diameter:105mm,height:85mm
High Light:

2mv/v low profile load cell

,

low profile load cell 12m Cable

,

20t mechanical load cell

IN-LFSC 1t to 20t Tension and Compression Load Cell for silo scale

12m Cable Round Load Cell 150% Maximum Safe Overload With Strong Reset Ability for silo scale





special features:



  •  accuracy grade:C3
  •  sensitivity:2.0±0.006
  •  zero balance:±1%





Load cell Parameter:



Items UNIT TECHNICAL DATA
Rated capacities(Emax) T 1, 2, 3, 5, 10, 20
Sensitivity mV/V 2.0±0.006
Total error F.S ±0.05%(2, 3, 5T); ±0.1%(10, 20T)
Creep error(30min) F.S ±0.03%
Zero balance F.S ±1%
TCO F.S/℃ ±0.02% / 10
TC SPAN F.S/℃ ±0.02% / 10
Input impedance Ω 400±10
Output impedance Ω 352±3
Insulation impedance ≥5000
Temperature range, operating -30~ +70
Maximum safe overload F.S 150%
Ultimate overload F.S 200%
Excitation, recommend V 10-12V DC
Excitation, maximum V 15V DC
Protection class   IP67
Construction   Alloy Steel
Cable m Length: 12
mm Diameter: φ6
Wiring   Exc+( Green) Exc-(Black) Sig+(White) Sig-( Red)



Load Cell Dimension

2mv/V 20t Round Mechanical Low Profile Load Cell 12m Cable For Silo Scale 02mv/V 20t Round Mechanical Low Profile Load Cell 12m Cable For Silo Scale 12mv/V 20t Round Mechanical Low Profile Load Cell 12m Cable For Silo Scale 2
