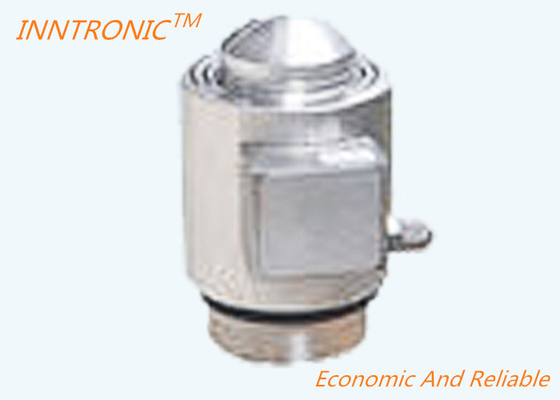

2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale

2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale
2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale

Large Image :  2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IZSKB

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Delivery Time: 15-30days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Detailed Product Description
Pattern: Canister Compression Column Load Cell Capacity: 2t To 50t
Output: 2mv/v Material: Alloy Steel/stainless Steel
Application: Hopper Scale Canned Scale Interchangeable Brand: HBM
IP Protection Standard: IP67 Accuracy Grade: OIML C3
Cable Length: 14m Size: 2t:diameter:88mm Height:138.5mm
High Light:

2mV/V truck scale load cells

,

2t truck scale load cells

,

50t force measurement load cell

IZSKB 2t to 50t Canister Compression Column Load Cell for hopper scale



Waterproof 2mV/V Column Load Cell , 2t To 50t Load Cell For Weight Measurement for Hopper scale Canned scale


Product Details


FEATURES:
● Capacity 2t to 50t
● Low porfile
● OIML C3


APPLICATION:
● Hopper scale
● Canned scale




Rated capacity D1 D2 D3 F H1 H2 H3 L
2,3,5 Ф24 Ф70 Ф88 15 138.5 120 17 107
10,15,20,25,30,40,50 Ф54 Ф70 Ф88 35 138.5 120 17 107






SPECIFICATION:
Rated capacity: 2ton to 50ton Operating temperature range: -30 to +70℃
Rated output:1.0±0.002mv/v Maximum safe overload;120% OF R.C
Combined error:±0.05% F.S Ultimate safe overload;150% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation;10 to 12V DC
Non-linearity:±0.05% F.S Maximum Excitation;15V DC
Hysteresis error:±0.03% F.S Environment protection: IP67
Zero balance: ±1% F.S Input impedance: 650±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 610±3Ω
Temperature effect on zero: ±0.02% F.S/10℃ Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S/10℃ Material: alloy steel/stainless steel
Compensated temperature range: -10 to +40℃

Cable length: 14meter, diameter 6mm




2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale 0

2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale 1 2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale 2



Install application environment:



2mV/V 50t alloy steel Truck Scale Load Cells Load Cell weight sensor For Hopper Scale 3
