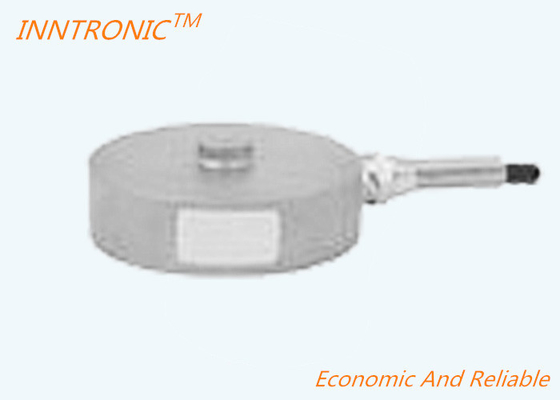

Load Cell IN-616A 20t IP 66 Alloy steel round weight force sensor for Silo batching scale 2mv/v

Large Image : Load Cell IN-616A 20t IP 66 Alloy steel round weight force sensor for Silo batching scale 2mv/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-616A

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Delivery Time:	15-30days
Payment Terms:	T/T
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Pattern:	Silo Load Cell	Capacity:	25kg To 20t
Output:	2mv/v	Material:	Alloy Steel / Stainless Steel
Application:	Motion Weighing ,silo Scale, Batching Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP 66	Accuracy Grade:	C3
Nonlinearity:	0.05%	Size:	25KG Diameter：22mm,height:55mm
Highlight:	25kg Shear Beam Load Cell , Shear Beam Load Cell Anti Interface , silo load cell systems IP66

IN-616A 25kg to 20t silo Load Cell for motion weighing silo scale, batching scale

High Anti - Interface Low Profile Load Cell IP 66 For Motion Weighing Silo Scale IP 66

capacity: 25-50kg

Protection to IN67
low profile, high anti-interface
suitable for motion weighing

Dimensions
Rate Capacity	H	H1	C	C1	C2	R	T1
kg/mm
25-50	22	4	62	12	55	50	M5
40CrNiMoA
100-2000	22	4	62	12	55	50	M5
5000	40	5	98	20	72	150	M6
10000	45	5	98	20	72	150	M6
20000	50	7	118	25	90	250	M8
lb/inches(conversion of above dimensions)
55-110	0.87	0.16	2.44	0.47	2.16	1.97	M5
220-440	0.87	0.16	2.44	0.47	2.16	1.97	M5
11022	1.57	0.2	3.86	0.79	2.8	2	M6
22045	1.77	0.2	3.86	0.79	2.83	5.91	M6
44092	1.97	0.28	4.65	0.98	3.54	9.84	M8

SPECIFIATIONS
Full Scale Output	2.0±10%mV/V	Recommed Excitation	10V(15V Maximnm)
Zero Balance	±0.04mV/V	Insulation Resisitance	>2[50V DC]GΩ
Nonlinearity	<±0.05%	Nominal Temperature Range	-10℃to40℃/14℉to104℉
Repetability	<±0.3%
Hysteresis Error	<±0.05%	Safe Overload	150% of full scale
Creep in 30 min	<±0.1%	Breaking Overload	300% of full scale
Input Resistance	400Ω±25	IP Rating	IP66
Output Resistance	350Ω±3	Cable Color Code	Exc+:Red;Exc-Black;Sig+Green;Sig-:White Shidld Bare
Element Materia	Alloy steel/Stainless steel
