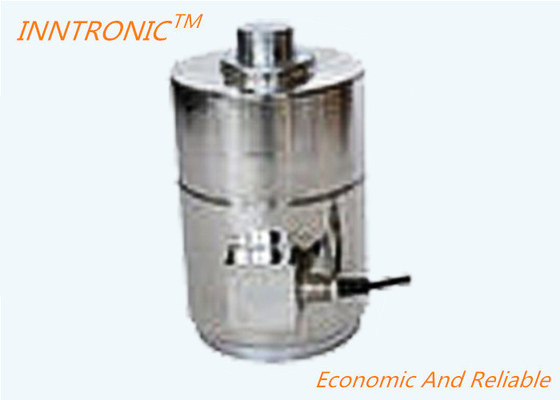

Load Cell CL016 100Klb Stainless Steel weighbridge weighing force sensor For Truck Scale weightbridge 2mv/v replace HBM

Load Cell CL016 100Klb Stainless Steel weighbridge weighing force sensor For Truck Scale  weightbridge 2mv/v replace HBM
Load Cell CL016 100Klb Stainless Steel weighbridge weighing force sensor For Truck Scale  weightbridge 2mv/v replace HBM

Large Image :  Load Cell CL016 100Klb Stainless Steel weighbridge weighing force sensor For Truck Scale weightbridge 2mv/v replace HBM

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: CL016

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Delivery Time: 15-30days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Detailed Product Description
Pattern: Column Canister Compresion Load Cell Capacity: 50Klb, 75Klb, 100Klb
Outout: 2mv/v Material: Stainless Steel/Alloy Steel
Application: Truck Scale Interchangeable Brand: HBM
7.IP Protection Standard: IP68 Accuracy Grade: C3
Cable Length: 6m Size: 50KIb:diameter:89mm, Height:157mm
Highlight:

75Klb high accuracy load cell

,

100Klb high accuracy load cell

,

Canister Stainless Steel Load Cell

CL016 50Klb 75Klb 100Klb Column Canister Compresion Load Cell for truck scale

Truck Scale Column Load Cell , 50Klb 75Klb 100Klb Stainless Steel Load Cell for truck scale





50Klb, 75Klb, 100Klb Load Cell





Technical data:

  •  Rated output(mv/v): 2.00±0.005
  •  Safe Overload: 120% FS
  •  Excitation Voltage: 10V(DC/AC)
  •  Input resistance(Ω): 385±15
  •  Output resistance(Ω): 350±5
  •  Zero Balance: ±1.00% FS
  •  Non-linearity: ±0.03% FS.
  •  Hysteresis: ±0.03%FS
  •  Repeatablity: ±0.02% FS.
  •  Creep(30minutes): ±0.03% FS.
  •  Compensated temperature range: -10℃——+50℃
  •  Operating Temperature Range:-20℃——+60℃
  •  Temperature effect on zero: ±0.03%FS/10℃
  •  Temperature effect on output:±0.03%FS/10℃
  •  Insulation Resistance:≥5000MΩ
  •  Cable Color code:+Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
  •  Cable:Φ5.4×6m

Capacity Size mm
t A B C D E SR M
1-10 89 157 140 50 44 120 M6
20-50 145 280 230 90 90 250 M10
100 204 330 300 130 96 350 M16
200 242 420 350 160 116 600 M20





Load Cell CL016 100Klb Stainless Steel weighbridge weighing force sensor For Truck Scale  weightbridge 2mv/v replace HBM 0Load Cell CL016 100Klb Stainless Steel weighbridge weighing force sensor For Truck Scale  weightbridge 2mv/v replace HBM 150



A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.

At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.

Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.

If you are looking for a high-quality load cell, it is important to choose a reputable supplier. Look for a supplier that offers a wide range of load cells, and that has a proven track record of providing reliable and accurate products. With the right load cell, you can ensure that your weight measurements are always accurate and reliable, helping you to improve your processes and increase efficiency.
