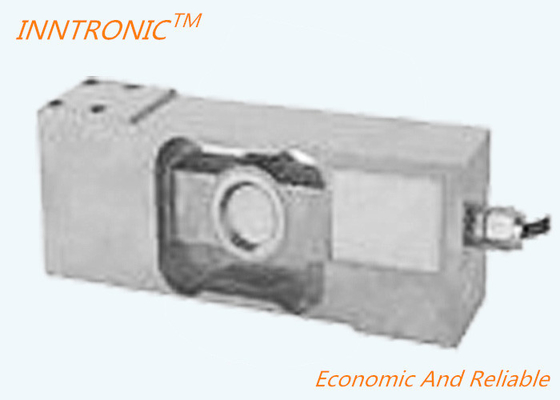

IN-SSP01 Load Cell 1 ton C3 Waterproof Stainless Steel Weight force sensor for Platform bench Scale Food checkweigher 2mV/V

Large Image : IN-SSP01 Load Cell 1 ton C3 Waterproof Stainless Steel Weight force sensor for Platform bench Scale Food checkweigher 2mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-SSP01

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Delivery Time:	15-30days
Payment Terms:	T/T
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Pattern:	Stainless Steel Single Point Load Cell	Capacity:	100kg, 250kg, 300kg, 500kg, 800kg, 1000kg
Output:	2mV/V	Material:	Alloy Steel Stainless Steel
Application:	Platform Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP67	Accuracy Grade:	C3
Cable Length:	3m	Size:	746245
Highlight:	1000kg stainless steel load cell , platform scale stainless steel load cell , waterproof load cell High Motion Action

IN-SSP01 100kg 500kg 1000kg 1t stainless steel Single point load cell for platform scale

High Motion Action Single Point Load Cell , Waterproof Stainless Steel Load Cell for platform scale

Advantages:

High precision, high motion action, big capacity,small structure.
made by stainless steel 17-4PH
IP68
Application: Food check weigher, platform scale, and other motion weighing system

Dimension

	Unit	Parameter
Accuracy class		0.03,0.05
Maximum capacity (Emax)	kg	100kg, 250, 300, 500, 800, 1000
Sensitivity (Cn) / Zero balance	mV/V	2±0.2/0 ± 0.1
Temperature effect on zero balance (TKO)	% of Cn/10K	± 0.0175
Temperature effect on sensitivity (TKc)	% of Cn/10K	± 0.0175

Hysteresis error (dhy)		± 0.02
Non-linearity(dlin)	% of Cn	± 0.0270

Creep(dcr) over 30 min.	% of Cn	± 0.0250
Eccentric error		± 0.0233
Input (RLC) &Output resistance (Ro)		400±20 & 352 ±3

Nominal range of excitation voltage (Bu)		5-15VDC
Insulation resistance (Ris) at50Vdc		> 5000
Service temperature range (Btu)		-20...+50
Safe load limit (EL) & Breaking load(Ed)	% of Emax	150 & 200

Protection class according to EN 60 529 (IEC 529)		IP67
Material :Measuring element		Alloy steel Stainless Steel


Maximum capacity (Emax)	kg kg	250	300	500	800	1000
Min. load cell verification inter(vmin)	mm	0.05	0.1	0.1	0.2	0.2
Maximum platform size	mm		600*500
Deflection at Emax (snom)			< 0.5
Weight(G),appr.ox	kg		1 .8
cable diameter: Ø5mm Length	m		3
Mounting:Cylindrical head			10M-10.0(1T~1.5T), M12-10.9(2T~2.5T)
Tightening torque	N.m		1T-1.5T:68N.m, 2T-2.5T: 100N.m

IN-SSP01 Load Cell 1 ton C3 Waterproof Stainless Steel Weight force sensor for Platform bench Scale Food checkweigher 2mV/V 6

IN-SSP01 Load Cell 1 ton C3 Waterproof Stainless Steel Weight force sensor for Platform bench Scale Food checkweigher 2mV/V 7
