IN-ST01 Grey Aluminum Portable Truck Scale 10t，20t，40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A

Large Image : IN-ST01 Grey Aluminum Portable Truck Scale 10t，20t，40t 4 pads For car weighing IP66 7.5V/3A or 12V/3A

Product Details:

Place of Origin:	China
Brand Name:	Inntronic
Model Number:	IN-ST01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	15 working days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Detailed Product Description

Rated Load:	10t，20t，40t	Static Comprehensive Error(%F.S):	0.1-0.3
Rated Output(mV/V):	1.0±0.1	Insulation Resistance(MΩ):	≥5000(100VDC)
Error On Corners(%F.S):	0.2	Non-linearity(%F.S):	0.2
Repeatariy(%F.S):	0.05	Zero Balance(%F.S):	±1
Excitation Voltage(VDC):	9~15	Defend Grade:	IP66
Use Temp.range(℃):	-30~+80	Temp.effect On Zero(F.S/10℃):	0.03
Highlight:	20t Portable Truck Scales , 40t Portable Truck Scales , portable scales for semi trucks IP66

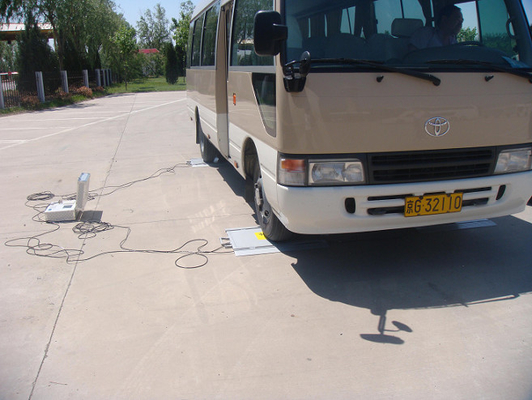

IN-ST01 10t 20t 40t portable Four-channels Static vehicle axle scale truck scales Defend grade: IP66

Customized Language Portable Truck Scales IP66 With High Grade Aluminum Suitcase

Rated load: 10,20,40(t)

Static comprehensive error(%F.S): 0.1-0.3

Features
1, Stable test results – nearly test results in the repeat testing for one axle
2, Can store as many as 10000 vehicle testing records;
3, Four channels that can be connected to Four weighing pad and develop to be static weighing,display four wheel weight,,each axle weight and gross weight
4, Dispay uints: kg
5, Max load per platform 10000 kg, total load per 4 platforms 40000 kg
6, Precision:0.3%
7, Power supply: built-in 6V/10AH leading acid accumulator, and can connect with DC source (7.5V/3A or 12V/3A)

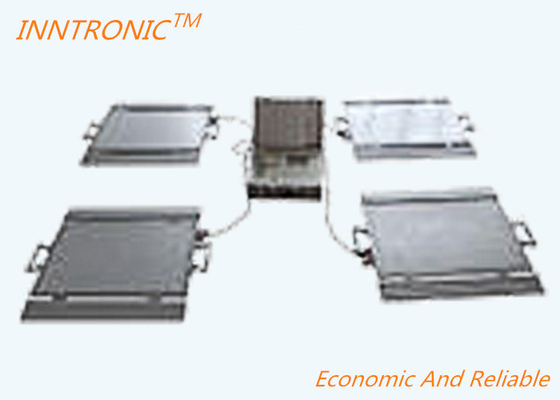

Parts including:

4pcs portable weighing pads
8pcs slope
Four channels-Static weighing indicator
RS232 port is used to communicate with PC and printer

Four channels-Static weighing indicator

size: 400mm X 300mm X 180 mm netweight: 8KG
material: ABS structural foam

Multiple channel, one weighing indicator Max. can be connected to eight weighing pad
Micro printer is embedded in the instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization
Floating technology is adopted to remove zero drift.
Touch screen LCD Monitor, Numbered options,easy
RS232 port is used to communicate with PC
The instrument can work independently. And it also can upload testing data to computers
mature inquiry and statistic function
The auto power supply system can be used for providing electricity and charging

weighing pads

size:714 mm(L) X419mm(W)X 18mm(H) netweight: 10KG/pcs
materials: High strength Aluminum alloy

Parts:IN-ST01 weighing pad(The weighing pad’s model can be changed according to customer’s request)

slope

size:714mm (L) X150mm(W) X 18(H) mm netweight: 5 KG/pcs

materials: High strength Aluminum alloy

Features:
Aluminum-alloy; Ultra thin weighpad design;
Easily mounted / unmounted slope; Hermetically sealed, suits different environment;
Works both dynamically and statically;
Can be used to measure axleweight and whole vehicle weight when four weigh-pads are connected together.

Parameter

Rated output(mV/V): 1.0±0.1	Insulation resistance(MΩ): ≥5000(100VDC)
Non-linearity(%F.S): 0.2	Compensated temp.range(℃): -10~+50
Error on corners(%F.S): 0.2	Use temp.range(℃): -30~+80
Repeatariy(%F.S): 0.05	Temp.effect on zero(F.S/10℃): 0.03
Zero balance(%F.S): ±1	Temp.effect on span(F.S/10℃): 0.05
Excitation voltage(VDC): 9~15	Safe overload(%): 120
Recommended voltage(V): 10	Ultimate overload(%): 150
Defend grade: IP66	Netweight(kg): 10(20t), 30(40t)
