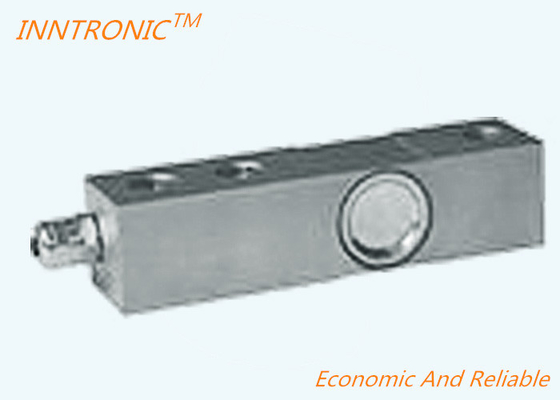

Load Cell IN-3411 10ton shear beam weighing Alloy steel weight force Sensor IP67 For Floor Scale 3.0±0.04mV/V

Large Image : Load Cell IN-3411 10ton shear beam weighing Alloy steel weight force Sensor IP67 For Floor Scale 3.0±0.04mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-3411

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	T/T, Western Union, paypal or Other

Contact Now

Detailed Product Description

Pattern:	Share Beam Silo Load Cell	Capacity:	0.05-10t Load Cell
Output:	2mv/v	Material:	Resistance Strain
Interchangeable Brand:	Vishay-Tedea 3400 Load Cell	IP Protection Standard:	IP67
Highlight:	0.05t micro load cell sensor , 10ton micro load cell sensor , floor scale parallel beam load cell

IN-3411 0.05to10t Share Beam Load Cell for floor scale

Resistance Strain Share Beam Silo Load Cells , 0.05t To10t Load Cell For Floor Scale

Good quality with long life

Vishay-Tedea 3400 load cell

features:

accuracy grade:C2 C3
Zero balance:±1.0%RO

Items	UNIT	TECHNICAL DATA

Capacity	t	0.05-10

Rated output	mV/V	3.0±0.04

Accuracy class		C2	C3

Combined error	%RO	<±0.030	<±0.020

Zero balance	%RO	±1.0

Input resistance	Ω	380±10	1050±10

Output resistance	Ω	350±3	1000±5

Insulation resistance	MΩ(50V)	5000

Recommended excitation voltage	V	5~12

Compensated temperature range	ºC	-10~+40

Operating temperature range	ºC	-35~+80

Safe overload	%RO	150

Ultimate overload	%RO	200

Load cell material		Alloy steel IP67

		17-4PH	Stainless steel IP68

Connecting cable		0.25~3tφ5.7X3.5m

		5~10tφ5.7X6m

Method of connecting wire		RedEX(+) Black(EX-) Green(Sig+)White(Sig-)
