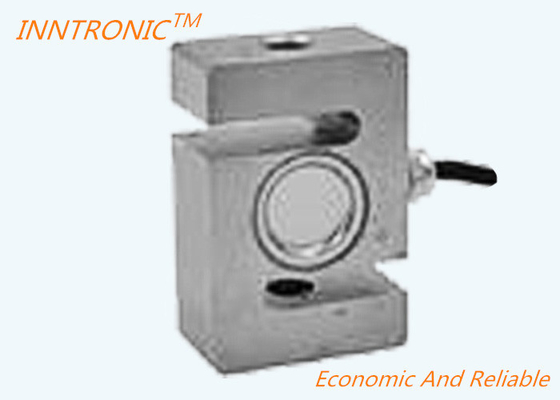

S type Load Cell IN-S011 100KG C3 Crane Scale Shear Beam Alloy Steel Moistureproof weight force sensor 3mV/V

Large Image : S type Load Cell IN-S011 100KG C3 Crane Scale Shear Beam Alloy Steel Moistureproof weight force sensor 3mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-S011

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	T/T, Western Union, paypal

Contact Now

Detailed Product Description

Pattern:	S Type Silo Load Cell	Capacity:	100kg-20t
Output:	2mv/v	Material:	Alloy Steel/ Stainless Steel
Application:	Batching Scale, Crane Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP65	Accuracy Grade:	C3
Highlight:	100KG Shear Beam Load Cell , Crane Scale Crane Shear Beam Load Cell , force measurement load cell Moistureproof OEM

IN-S011 100kg 300kg 750kg 1000kg S Type Silo Load Cell for crane scale, batching scale

Moistureproof Silo Load Cells , Crane Scale S Type Load Cell 100kg - 1000kg for Batching scale

Capacity: 100kg 300kg 750kg 1000kg
Application: Crane scale, test machine, Batching scale

Cable color code :Input: Red(+) Black(-) Output: Green(+) White(-)

Technical specifications		Technical specifications
Rated output(mv/v)	3mV/V	Rated capacity	100--1000 kg
Zero balance	±1.0% FS	Comprehensive precision	±0.03%FS
Input Risistance	350±2	Nonlinearity	±0.03%FS
Output Risistance	380±10	Repeatability	±0.02%FS
Insulation Risistance	≥5000MΩ	Hysteresis	±0.02%FS
Recommendation excitation voltage	10V(DC)	Creep(30minutes)	±0.02%FS
Max excitation voltage	15V(DC)	Returning to zero	±0.02%FS
Temperature characterisitic		Physical characteristic
Compensated temperature range	-10℃-70℃	Safe loading range	120%FS
Operating temperature	-10℃-70℃	Limiting load range	150%FS
Temperature effect on zero	±0.02%FS/10℃	Protection rank	IP65
Temperature effect on output	±0.02%FS/10℃	Cable lenth	3m
