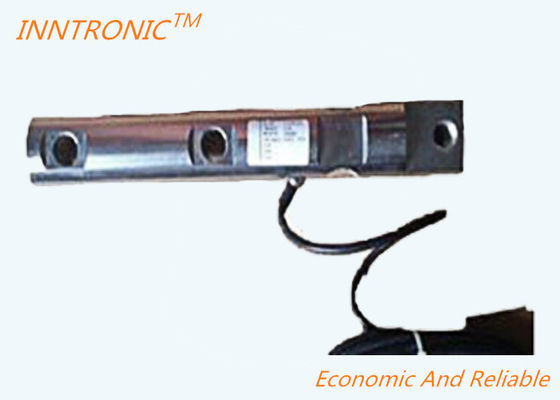

1.25klb 2.5klb Batching Scale Shear Beam Load Cell Bending Beam For Batching Scale

1.25klb 2.5klb Batching Scale Shear Beam Load Cell Bending Beam For Batching Scale
1.25klb 2.5klb Batching Scale Shear Beam Load Cell Bending Beam For Batching Scale

Large Image :  1.25klb 2.5klb Batching Scale Shear Beam Load Cell Bending Beam For Batching Scale

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-WBL33

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Pattern: Share Beam Silo Load Cell Capacity: 1.25klb 2.5klb 5klb Load Cell
Output: 2mv/v Material: Stainless Steel/Alloy Steel
Application: Batching Scale Interchangeable Brand: Weigh-Tronix 41035-0029 1.25K LOAD CELL
IP Protection Standard: IP68 Accuracy Grade: C3
High Light:

1.25klb shear beam load cell

,

2.5klb low profile load cell

,

Batching scale load cell bending beam

IN-WBL33 1.25klb 2.5klb 5klb Share Beam Load Cell for batching scale



Batching Scale Share Beam Silo Load Cell 1.25klb 2.5klb 5klb Good Interchangeability



Weigh-Tronix 41035-0029 1.25K LOAD CELL

  •  Weigh-Tronix 41035-1027 1.25K LOAD CELL
  •  Weigh-Tronix 41036-1057 2.5K LOAD CELL
  •  Weigh-Tronix 41037-1074 5K LOAD CELL
Items UNIT TECHNICAL DATA
Capacities lb 1.25K & 2.5k
Rated output mV/V 2
Safe overload FS 150%
Excitation voltage V 10-20 AC/DC
Input resistance OHMS 385±10
Output resistance OHMS 350±3
Zero balance FS ±1.00%
Seal type FS ENVIRONMENTALLY SEALED,IP67
Non-linearity FS ±0.03%
Hysteresis FS ±0.02%
Repeatability FS ±0.01%
Creep FS ±0.02%
Compensated temperature range ºC -10 ~ +40
Temperature effect on zero FS/ºC ±0.0027%
Temperature effect on output FS/ºC ±0.0015%
Insulation resistance MEGOHMS >5000
Load cell cable   4 conductor, 20 FT
Load cell wiring   Green +EXC Black -EXC White +SIG Red -SIG Braid/yellow: shield



1.25klb 2.5klb Batching Scale Shear Beam Load Cell Bending Beam For Batching Scale 01.25klb 2.5klb Batching Scale Shear Beam Load Cell Bending Beam For Batching Scale 1
