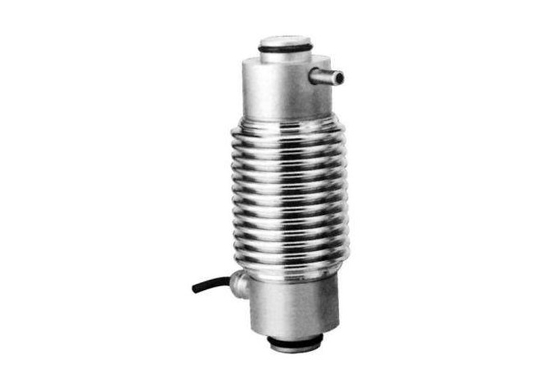

Product Description:
One of the key features of our Column Load Cell is its remarkably low creep error. With a 30-minute creep error of only ±0.03% or ±0.05% full scale, this load-measuring transducer provides precise and dependable results that you can trust. Additionally, it has an output resistance of 352±3, 352±5(L≥15m) Ohms, which ensures superior signal stability and consistency.
Our Column Load Cell is built to withstand harsh environments and conditions, thanks to its IP68 protection standard for capacities ranging from 10 to 40t. This load cell is completely waterproof and dustproof, allowing it to function effectively even in the most extreme situations.
Moreover, our Column Load Cell has excellent insulation resistance of ≥5000 Megohms, which guarantees reliable performance and longevity. You can be confident that this load-measuring sensor will provide accurate and consistent data for years to come.
Our Column Load Cell is available in various capacities ranging from 25t to 90t, making it suitable for a wide range of applications. Whether you need to measure the weight of heavy machinery, vehicles, or materials, this load cell has got you covered.
In summary, if you're looking for a dependable and precise load-measuring transducer, look no further than our Column Load Cell. With its low creep error, robust build, and excellent insulation resistance, this load cell is the perfect solution for all your load-measuring needs.
Features:
- Product Name: Column Load Cell
- Type: Column-Based Load Cell
- Features: Force-Sensing Transducer, Load-Measuring Sensor
- Insulation Resistance: ≥5000 Megohms
- Output Resistance: 352±3, 352±5(L≥15m) Ohms
- Ip Protection Standard: IP68(10~40t)
- Compensated Temperature: -10°C To 40°C
- Application: Truck Scale
Technical Parameters:
| Product Attribute |
Value |
| Force-Sensing Transducer Type |
Column-Type Load Cell |
| Rated Excitation |
10-12V DC |
| Output Resistance |
352±3, 352±5(L≥15m) Ohms |
| Material |
Alloy Steel, Stainless Steel |
| Compensated Temperature |
-10°C To 40°C |
| Insulation Resistance |
≥5000 Megohms |
| Application |
Truck Scale |
| Creep Error(30min) |
±0.03%, ±0.05% Full Scale |
| Capacity |
25t, 30t, 40t, 50t, 60t, 90t |
| Maximum Safe Overload |
150% Full Scale |
| IP Protection Standard |
IP68(10~40t) |
Applications:
The IN-CC24 is a force-sensing transducer that is designed to measure forces in compression. It can be used in various occasions and scenarios, such as industrial weighing systems, truck scales, tank weighing, and hopper scales. The capacity of the IN-CC24 ranges from 25t to 90t, making it suitable for different industrial applications.
The IN-CC24 is designed to operate in a compensated temperature range of -10°C to 40°C, ensuring accurate and reliable measurements even in extreme temperature conditions. With a maximum safe overload of 150% full scale, the IN-CC24 can withstand heavy loads without affecting its accuracy or durability.
One of the most notable features of the IN-CC24 is its IP protection standard of IP68 (10~40t). This means that it is protected against dust and water ingress, making it suitable for use in harsh industrial environments where dust and moisture are present.
In summary, the INNTRONIC Column Load Cell, model number IN-CC24, is a reliable and accurate force measuring transducer that is ideal for various industrial applications. Its high-quality production, durability, and IP protection standard make it a cost-effective choice for industries that require precise and reliable force measurements.
