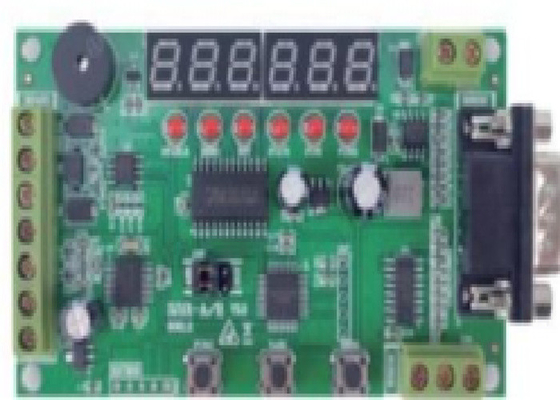

SJ101A/B RS485 RS232 Weighing/pressure Acquisition Module PCB board With Display 30HZ For Filling Machine

Large Image : SJ101A/B RS485 RS232 Weighing/pressure Acquisition Module PCB board With Display 30HZ For Filling Machine

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	SJ101A/B

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	L/C, T/T
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Output:

RS485 Or RS232

Type:

PCB With Display

Application:

Filling Machine

Highlight:

RS232 SJ101A/B weighing/pressure acquisition module

RS485 SJ101A/B weighing/pressure acquisition module

SJ101A/B RS485 or RS232 weighing/pressure acquisition module for filling machine

Features:

SJ101A/B adopts high precision AD sampling and can be connected to small sensors to achieve high precision weighing .

SJ101A supports 4-point calibration and can be matched with high-precision sensors to achieve balance precision weighing.

SJ101B uses single point calibration and is suitable for large range use.

The module uses RS485 or RS232 interfaces and supports MODBUS-RTU and free protocol.

Application:

Can be applied to customers intelligent electronic scale, connected to Android, MCU, computers, PLC and other equipment to achieve more complex functions. Such as garbage recovery system, medical fee system, filling machine, etc.

number of divisions

300000

Communication frequency

30HZ

accuracy

30000

sample frequency

10/20HZ

input voltage

12-24V

protocol

MODBUS-RTU self-defined protocol

excitation voltage

Communication parameter

By parameter setting

operating current

<80MA

Number of input sensors

1-4 350R weighing or pressure sensors

SJ101A/B RS485 RS232 Weighing/pressure Acquisition Module PCB board With Display 30HZ For Filling Machine 0
