Product Details:
Payment & Shipping Terms:
|
| Pattern: | Single Point Load Cell | Capacity: | 5/7/10/15/20/30/50/75/100/150kg |
|---|---|---|---|
| Output: | 2mv/v | Material: | Aluminum |
| Application: | Platform Scale | Interchangeable Brand: | HBM |
| IP Protection Standard: | IP66 | Accuracy Grade: | C3 |
| Cable Length: | 2m | Size: | 5.91*1.52*4.9 |
| Highlight: | 150kg Aluminum Single Point Load Cell,high Stability Aluminum Single Point Load Cell,platform scale weighing scale load cell |
||

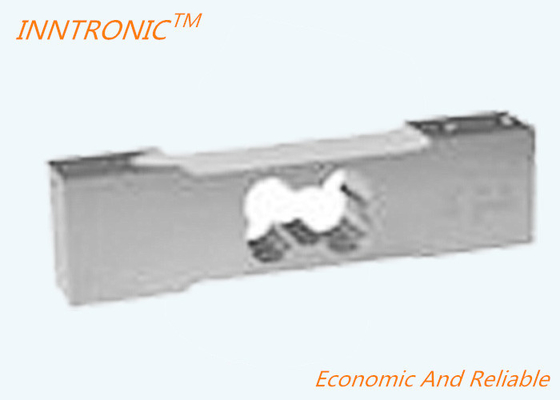

Nice Handy Shape Electronic Load Cell With Good Stability And Repeatability for weighing scale
special features:
| PARAMETER | UNIT | TECHNICAL DATA |
| Rated capacity (Emax) | kg | 5/7/10/15/20/30/50/75/100/150 |
| Accuracy class | C3 | |
| Sensitivity | mV/V | 2.0+- 10% |
| Platform size | mm | 400 450 |
| Zero balance | mV/V | 0.02 |
| Creep over 30min | % | 0.02 |
| Temperature effect on zero | %/ | 0.004 |
| Temperature effect on output | %/ | 0.0014 |
| Hysteresis | % | 0.017 |
| Linearity deviation | % | 0.017 |
| Repeatability | % | 0.017 |
| Nominal temperature range |  |
-10 to +40 |
| Service temperature range | |
-30 to +70 |
| Limit load | % of R.C. | 150 |
| Break load | % of R.C. | 200 |
| Nominal excitation | V | 5~12 |
| Max. excitation | V | 15 |
| Input impedance | |
405+- 10 |
| Output impedance | |
350+- 3 |
| Insulation resistance | M | >2000 |
| Cable length | M | 2 |
| Cable type | 4 conductors, Braid Shielded, Black PVC Jacket | |
| Color code | +Exc -Red, +Sig-Grn, -Exc-Blk, -Sig- Wht | |
| Construction | Aluminum | |
| Protection class to IEC529 | IP 66 |
