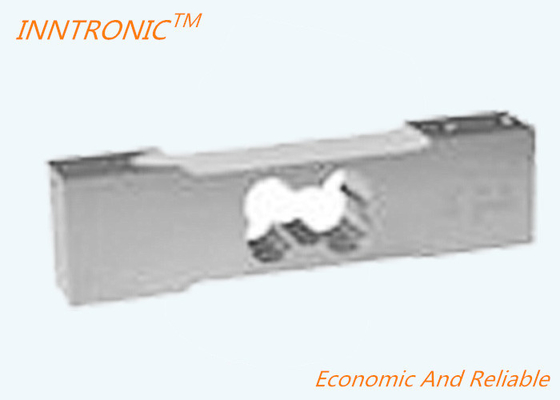

IN-1040 150kg C3 C6 Aluminum Single Point Load Cell weight force sensor IP66 For Platform Scale 2.0mV/V

Large Image : IN-1040 150kg C3 C6 Aluminum Single Point Load Cell weight force sensor IP66 For Platform Scale 2.0mV/V

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-1040

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Point Load Cell	Capacity:	5/7/10/15/20/30/50/75/100/150kg
Output:	2mv/v	Material:	Aluminum
Application:	Platform Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP66	Accuracy Grade:	C3
Cable Length:	2m	Size:	5.911.524.9
Highlight:	150kg Aluminum Single Point Load Cell , high Stability Aluminum Single Point Load Cell , platform scale weighing scale load cell

IN-1040 Single Point Load Cell for platform scale

Nice Handy Shape Electronic Load Cell With Good Stability And Repeatability for weighing scale

special features:

Aluminum
Creep precision up to 0.005%
Accuracy class:C3
Sensitivity:2.0+- 10%
Zero balance:0.02

PARAMETER	UNIT	TECHNICAL DATA
Rated capacity (Emax)	kg	5/7/10/15/20/30/50/75/100/150
Accuracy class		C3
Sensitivity	mV/V	2.0+- 10%
Platform size	mm	400 450
Zero balance	mV/V	0.02
Creep over 30min	%	0.02
Temperature effect on zero	%/	0.004
Temperature effect on output	%/	0.0014
Hysteresis	%	0.017
Linearity deviation	%	0.017
Repeatability	%	0.017
Nominal temperature range		-10 to +40
Service temperature range		-30 to +70
Limit load	% of R.C.	150
Break load	% of R.C.	200
Nominal excitation	V	5~12
Max. excitation	V	15
Input impedance		405+- 10
Output impedance		350+- 3
Insulation resistance	M	>2000
Cable length	M	2
Cable type		4 conductors, Braid Shielded, Black PVC Jacket
Color code		+Exc -Red, +Sig-Grn, -Exc-Blk, -Sig- Wht
Construction		Aluminum
Protection class to IEC529		IP 66
