Load Cell IN-Z6 1T C3 bellow Single Ended Shear Beam Stainless Steel force sensor For Silo Platform Scales 2m/v

Name: Load Cell IN-Z6 1T C3 bellow Single Ended Shear Beam Stainless Steel force sensor For Silo Platform Scales 2m/v
Brand: inntronic
SKU: IN-Z6
Rating: 4.8 (186 reviews)

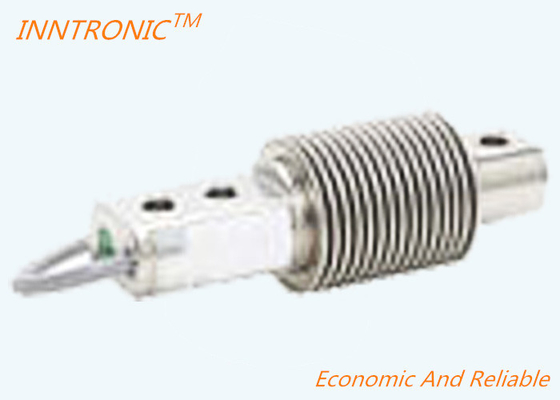

Large Image : Load Cell IN-Z6 1T C3 bellow Single Ended Shear Beam Stainless Steel force sensor For Silo Platform Scales 2m/v

Product Details:

Place of Origin:	China
Brand Name:	inntronic
Model Number:	IN-Z6

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Delivery Time:	15-30 days
Payment Terms:	L/C

Contact Now

Detailed Product Description

Pattern:	Single Ended Silo Load Cell	Capacity:	5kg To 1t
Output:	2m/v	Material:	Stainless Steel
Application:	Silo Scale	Interchangeable Brand:	HBM
IP Protection Standard:	IP68	Accuracy Class:	C3
Non-linearity:	0.05	Hysteresis Error:	±0.05~±0.008
Highlight:	1000kg Shear Beam Load Cell , Single Ended Shear Beam Load Cell , load cells for platform scales ODM

IN-Z6 5kg to 1t Single Ended silo Load Cell for silo scale

Stainless Steel Single Ended Silo Load Cells Welded On Bellows Off Center Compensated for silo scale

Feature

-welded-on bellows
-normally loads: 5kg-1t
-up to 60000 divisions
-stainless steel
-off-center compensated

Specification

Type		Z6FD1		Z6FC3		Z6FC3M1		Z6FC4	Z6FC6
Accuracy class Number of scale interval		D1 1000		C3 3000		C3/MI7.5 3000		C4 4000	C6 6000
Maximum capacity	Kg	5,10,20, 50,100,200,500, 1000		10,20, 50,100,200,500, 1000		50,100,200		20, 50,100,200,500	50,100,200
Sensitivity	mV/V	2
Temperature effect on sensitivity On zero signal	% of Cn/10k	±0.05 ±0.05	±0.008 ±0.0125		±0.008 ±0.0093		±0.007 ±0.0093			±0.004 ±0.0093
Hysteresis error Non-linearity Minimum dead load output return	% of Cn	±0.05 ±0.05 ±0.049	±0.017 ±0.017 ±0.0166		±0.0066 ±0.0180 ±0.0098		±0.013 ±0.015 ±0.0125			±0.008 ±0.012 ±0.0083
Input resistance Output resistance	Ω	350~480 356±0.12
Reference excitation voltage	V	5
Nom range of excitation voltage	V	0.5~12
Isolation resistance	GW	＞5
Operating temperature range Storage temperature range	℃	-30~+70 -50~+85
Limit load Lateral load limit Breaking load	% of E max	150 300 300
Degree of protection		IP68
