Product Details:
Payment & Shipping Terms:
|
| Pattern: | Single Point Load Cell | Capacity: | 1-20kg |
|---|---|---|---|
| Output: | 1.5±10%mV/V | Material: | Aluminum |
| Application: | Packaging Scale, Multihead Weigher | Interchangeable Brand: | HBM |
| IP Protection Standard: | IP 66 | Accuracy Grade: | C3 |
| Hysteresis Error: | <±0.017% | Size: | 88*16*32 |
| High Light: | 10kg platform load cell,20kg low capacity load cell,multi point load cells for weigher |
||

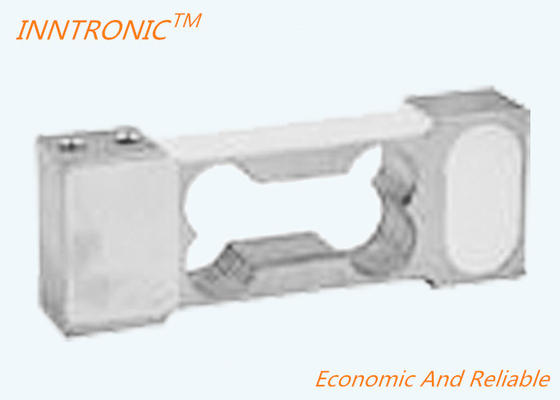

IN-651D 1kg to 20kg single point load cell aluminum material for electronic balance, counting scale
Sensitive Reaction Single Point Load Cell Aluminum Material For Counting Scale packaging scale, multihead weigher
capacity: 1-20kg
| Dimensions | ||||||||||
| Rate Capacity | L | L1 | L2 | L3 | L4 | L5 | W | H | T | |
| kg/mm | ||||||||||
| 1-20 | 88 | 44 | 6 | 10 | 56 | 10 | 16 | 32 | M5 | |
| lb/inches(conversion of above dimensions) | ||||||||||
| 2.20-44.9 | 3.46 | 1.73 | 0.24 | 0.39 | 2.2 | 0.39 | 0.63 | 1.26 | M5 | |
| SPECIFIATIONS | |||||
| Full Scale Output | 1.5±10%mV/V | Recommed Excitation | 10V(15V Maximnm) | ||
| Zero Balance | ±0.02mV/V | Reference Max.Platform Size | Capacity<1Kg:200*200mm | ||
| Nonlinearity | <±0.017% | Capacity<1Kg:230*230mm | |||
| Repetability | <±0.017% | Insulation Resisitance | >2[50V DC]GΩ | ||
| Hysteresis Error | <±0.017% | Nominal Temperature Range | -10℃to40℃/14℉to104℉ | ||
| Creep in 30 min | <±0.023% | Safe Overload | 150% of full scale | ||
| Input Resistance | 405Ω±15 | Breaking Overload | 300% of full scale | ||
| Output Resistance | 350Ω±5 | IP Rating | IP66 | ||
| Element Materia | Aluminum | Cable Color Code | Exc+:Red;Exc-Black;Sig+Green;Sig-:White Shidld Bare | ||
