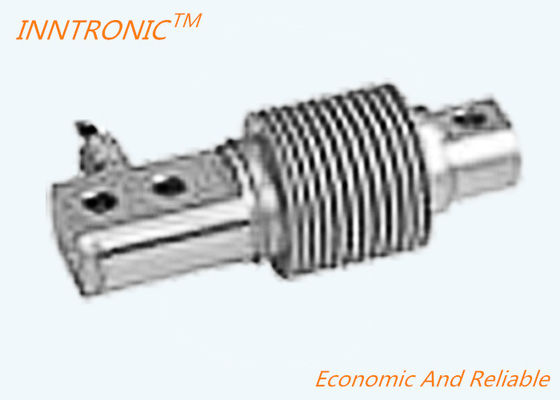

Delicate Structure Cantilever Type Load Cell 10kg To 500kg For Silo Scale

China Delicate Structure Cantilever Type Load Cell 10kg To 500kg For Silo Scale supplier

Large Image :  Delicate Structure Cantilever Type Load Cell 10kg To 500kg For Silo Scale

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-35503

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Contact Now
Detailed Product Description
Pattern: Single Ended Silo Load Cell Capacity: 10kg To 500kg
Output: 2mv/v Material: Measuring Element Cable Fitting Cable Sheath
Application: Silo Scale Interchangeable Brand: HBM
IP Protection Standard: IP68 Accuracy Grade: OIML R60 C2 C3
Cable Length: 3m Size: 120*45*25.5

IN-35503 10kg to 500kg Single Ended Silo Load Cell for silo scale

features:
  •  Accuracy class to OIML R60 C2 C3
  •  Sensitivity(Cn)/Zero balance:±0.02 ±.0017
  •  Non-linearity:±0.0250 ±0.0167


Items UNIT TECHNICAL DATA
Accuracy class to OIML R60   C2 C3
Maximum capacity(Emax): kg 10,20,50,75,100,200,250,300,500,1000
Minimum LC verification interval(Vmin) % of Emax 0.0200 0.0100
Sensitivity(Cn)/Zero balance mV/V 2.0 ±0.002/0 ±0.02
Temperature effect on zero balance(TKo)

% of

Cn/10k

±0.02 ±.0017
Temperature effect on sensitivity(TKc)

% of

Cn/10k

±0.02 ±.0017
Hysteresis error(dhy): % of Cn ±0.0270 ±0.0180
Non-linearity(din) % of Cn ±0.0250 ±0.0167
Creep(dcr) over 30 min % of Cn ±0.0233 ±0.0167
Input(Rlc)&output resistance(Ro) Ω 400±10 & 352±3
Nominal range of excitation voltage(Bu) V 5~12
Insulation resistance(Ris) at 50 Vdc ≥5000
Service temperature range(Btu) -30...+70
Safe load limit(El)&breaking load(Ed) % of Emax 120 &200
Protection class according to EN 60 529(IEC 529)   IP68

Material: measuring element

cable fitting Cable sheath



Stainless or alloy steel stainless steel or nickel-plated brass

PVC

Maximum capacity(Emax) kg 10 20 50 75 100 200 250 300 500 1000
Deflection at Emax(snom),approx mm 0.31 0.39 0.55
Weight(G),approx kg 0.5 1.9
Cable: Diameter: φ5mm Length: 5mm m 3 5



 Delicate Structure Cantilever Type Load Cell 10kg To 500kg For Silo ScaleDelicate Structure Cantilever Type Load Cell 10kg To 500kg For Silo Scale
