500g - 2000g Single Point Load Cell 0.005% Creep Precision For Electronic Balances

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

500g - 2000g Single Point Load Cell 0.005% Creep Precision For Electronic Balances

China 500g - 2000g Single Point Load Cell 0.005% Creep Precision For Electronic Balances supplier

Large Image :  500g - 2000g Single Point Load Cell 0.005% Creep Precision For Electronic Balances

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-651E

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Contact Now
Detailed Product Description
Pattern: Single Point Load Cell Capacity: 500/1000/2000 G
Output: 2mv/v Material: Aluminum
Application: Electronic Balances Interchangeable Brand: HBM
IP Protection Standard: IP66 Accuracy Grade: C3
Cable Length: 0.35m Size: 2.76*0.87*0.47

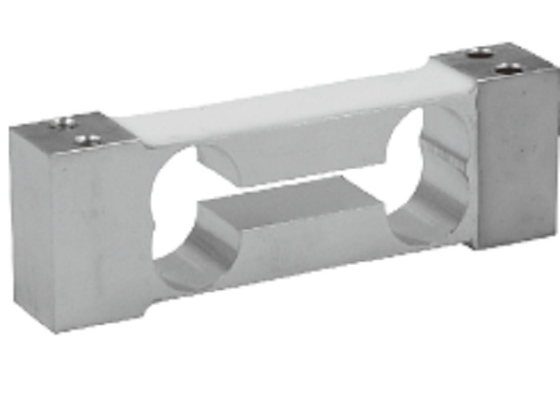

IN-651E 0.5 to 2kg Single Point Load Cell for electronic balances



special features

  •  Aluminum
  •  Creep precision up to 0.005%

PARAMETER UNIT TECHNICAL DATA
Rated capacity (Emax) g 500/1000/2000
Huazhun Grade   A B
Sensitivity mV/V 1.0+- 10%
Zero balance mV/V 0.02
Creep over 30min % 0.008 0.012
Temperature effect on zero %/ 0.0040
Temperature effect on output %/ 0.0012
Hysteresis % 0.01 0.012
Linearity deviation % 0.01 0.012
Repeatability % 0.01 0.012
Nominal temperature range Single Point Load Cell IN651E -10 to +40
Service temperature range Single Point Load Cell IN651E -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 200
Nominal excitation V 5 ~12
Max. excitation V 15
Input impedance Single Point Load Cell IN651E 405+- 10
Output impedance Single Point Load Cell IN651E 350 +-3
Insulation resistance M >2000
Cable length M 0.35
Cable type   4 conductors, Braid Shielded, Black PVC Jacket
Color code   +Exc-Red, +Sig-Grn, -Exc-Blk, -Sig- Wht
Construction   Aluminum
Protection class to IEC529   IP 66

 500g - 2000g Single Point Load Cell 0.005% Creep Precision For Electronic Balances
