300 To 3000g Precision Load Cell Low Profile With Self - Restoring Function

China 300 To 3000g Precision Load Cell Low Profile With Self - Restoring Function supplier

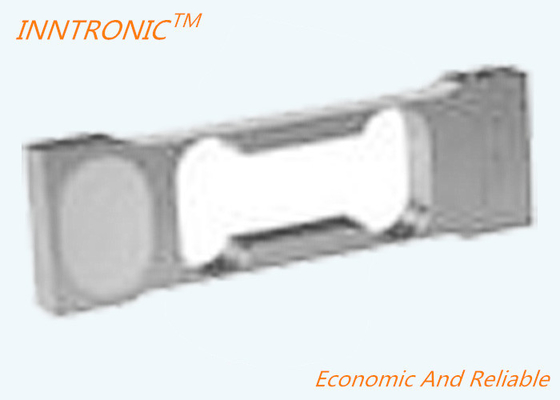

Large Image :  300 To 3000g Precision Load Cell Low Profile With Self - Restoring Function

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-1004

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Contact Now
Detailed Product Description
Type: Single Point Load Cell Capacity: 300/450/600/1000/1200/1500/2000/3000g
Output: 2mv/v Material: Stainless Steel/Alloy Steel
Application: Ecectronic Balances Interchangeable With: Vishay Tedea 1004 Load Cell
IP Protection Standard: IP 66 Accuracy Grade: A,B
Hysteresis: 0.01% Linearity Deviation: 0.01%

IN-1004 Single Point Load Cell for ecectronic balances

Special features:
  •  Aluminum Load Cell
  •  Creep precision up to 0.005%
  •  Working video:https://youtu.be/5DuzXmzG-7Q



Interchangeable Products

  •  Vishay Tedea 1004 Load Cell

PARAMETER UNIT TECHNICAL DATA
Rated capacity (Emax) g 300/450/600/1000/1200/1500/2000/3000
Huazhun Grade   A B
Sensitivity mV/V 1.0+- 10% (1.6mv 10% available)
Zero balance mV/V 0.02
Creep (From stable to 2min) % 0.0033 0.005
Creep over 30min % 0.008 0.012
Temperature effect on zero %/ 0.004
Temperature effect on output %/ 0.001
Hysteresis % 0.01 0.01
Linearity deviation % 0.01 0.01
Repeatability % 0.01 0.01
Nominal temperature range Single Point Load Cell-IN1004 -10 to +40
Service temperature range Single Point Load Cell-IN1004 -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 200
Nominal excitation V 5~12
Max. excitation V 15
Input impedance Single Point Load Cell-IN1004 405+- 10
Output impedance Single Point Load Cell-IN1004 350 +-3
Insulation resistance M >2000
Cable length M 0.4
Cable type   4 conductors, Braid Shielded, Black PVC Jacket
Color code   +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht
Construction   Aluminum
Protection class to IEC529

IP 66

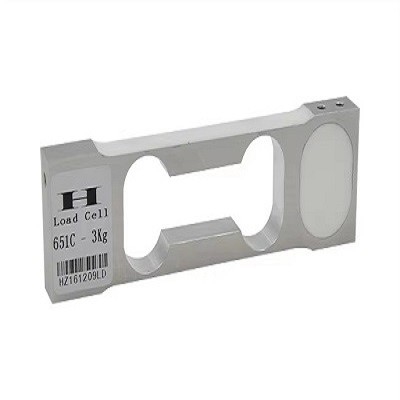

300 To 3000g Precision Load Cell Low Profile With Self - Restoring Function 300 To 3000g Precision Load Cell Low Profile With Self - Restoring Function
