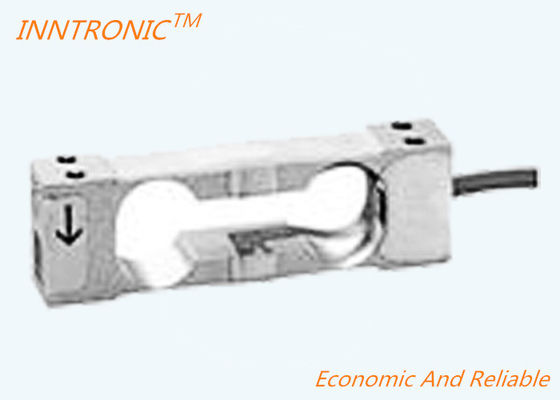

ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V

ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V
ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V

Large Image :  ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: ISP4MC3

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Type: Single Point Load Cell Capacity: 0.3kg 0.5kg 2kg 3kg
Output: 2mv/v Material: Aluminum
Application: Electronic Balance Interchangeable Brand: HBM
IP Protection Standard: IP67 Accuracy Grade: C3
Hysteresis Error (dhy)3): ±0.0150 Non-linearity (dlin)3): ±0.0150
High Light:

500g Aluminum Single Point Load Cell

,

2000g Aluminum Single Point Load Cell

,

electronic load cell for electronic balance

ISP4MC3 0.3kg 0.5kg 2kg 3kg Single Point Load Cell for electronic balance

Small Size Low Capacity Load Cell Shielded Connection Cable For Electronic Balance



Good quality and long life



Special features


−  For determining small masses

−  Small size

−  Accuracy class C3 with OIML-

 R60 test report

−  Off center load compensated

−  Degree of protection IP65

 according to IEC 529

−  Shielded connection cable
























Type IPW4MC3
Order-No. 1-PW4C3/300G-1 1-PW4C3/500G-1 1-PW4C3/2KG-1 1-PW4C3/3KG-1
Accuracy class1) C3
Number of load cell intervals (nLC) 3000
Maximum capacity (Emax)2)) g/kg 300 500 2 3
Minimum LC verification interval (vmin) g 0.05 0.1 0.2 0.5

Temperature effect on

zero balance (TK0)

% v.

Cn /

10 K



0.0233 0.0280 0.0140 0.0233
Max. platform size mm 800 x 800
Sensitivity (Cn) mV/V 1.0±0.1 2.0±0.2
Zero balance   0±0.1

Temperature effect on

sensitivity (TKC)3)

Temperature range

+20 ... +40℃ [+68 ... +104℉]

−10 ... +20℃ [+14 ... +68℉]

% v.

Cn /

10 K

% of Cn

±0.0175

±0.0117

Hysteresis error (dhy)3) ±0.0150
Non-linearity (dlin)3)   ±0.0150
Minimum dead load output return (DR)



Ω

±0.0245
Off center load error4) ±0.0233
Input resistance (RLC) 380±38
Output resistance (R0) 380±38
Reference excitation voltage (Uref) V 5
Nominal range of excitation voltage (BU) 15
Insulation resistance (Ris) at 100 VDC



> 2
Nominal temp. range (BT)

°C

[°F]

−10 ... +40 [+14 ... +104]
Service temp. range (Btu) −10 ... +50 [+14 ... +122]
Storage temp. range (Btl) −25 ... +70 [−13 ... +158]

load limit (EL )

at max.

100mm eccentricity

% of

Emax

% of

Emax

150

100

Lateral load limit (Elq), static 200
Breaking load (Ed)   >300
Deflection at Emax (snom), approx.

mm

kg

< 0.4
Weight (G), approx. 0.07

Protection class according to

EN 60 529 (IEC 529)

  IP67

Material: Measuring element

Coating

Cable sheath



Aluminum

Silicone rubber

PVC

ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V 0

ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V 1ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V 2ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V 3

ISP4MC3 2kg C3 Electronic Aluminum Single Point Weight Load Cell sensor For Electronic Balance 1.0±0.1mV/V 4
