C3 IP65 High Precision Load Cell 3m Cable With Resistance To Partial Load Ability

China C3 IP65 High Precision Load Cell 3m Cable With Resistance To Partial Load Ability supplier

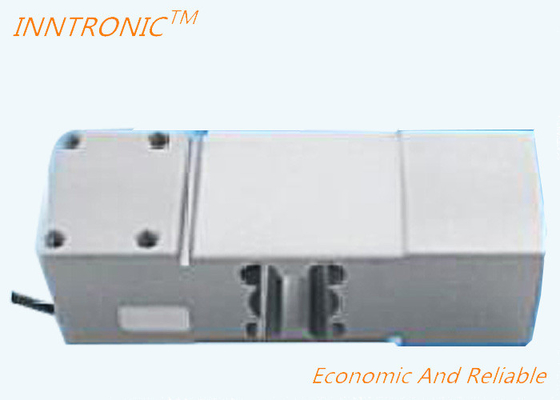

Large Image :  C3 IP65 High Precision Load Cell 3m Cable With Resistance To Partial Load Ability

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-UDJ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Contact Now
Detailed Product Description
Pattern: Single Point Load Cell Capacity: 100,150,200,300,500,800kg
Output: 2mv/v Material: Aluminum
Application: Platfrom Scale Interchangeable Brand: HBM
IP Protection Standard: IP65 Accuracy Grade: C3
Cable Length: 3m Recommend Excitation: 10DC

IN-UDJ 100kg 150 to 800kg Single Point Load Cell for Platform scale

product information:

  •  Accuracy grade:C3
  •  Sensitivity:2.0±0.2mV/V
  •  Zero balance:3%Emax






Rated load 100,150,200,300,500,800kg
 Total error C3 Operating Temp Range -20~+50℃
Sensitivity 2.0±0.2mV/V Safe load limit 150%F.S
Zero balance ±3%Emax Breaking load 300%F.S
Creep(30min) 166ppm Recommend excitation 10DC
TC O 17.5ppm/10℃ Max excitation 15V DC
TC SPAN 15ppm/1O℃ Protection Class IP65
Input resistance 404±15Ω Material Aluminum
Output resistance 350±3Ω Cable Length=3m
Insulation resistance ≥2000MΩ

Diameter:Φ5mm



C3 IP65 High Precision Load Cell 3m Cable With Resistance To Partial Load Ability

±3%Emax
