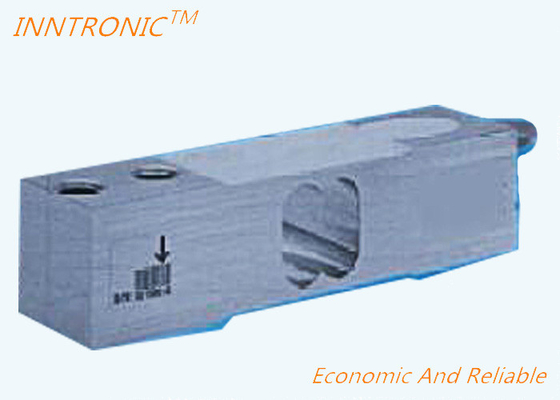

Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3

Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3
Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3

Large Image :  Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IPWSE

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
Pattern: Single Point Load Cell Capacity: 100kg To 750kg
Material: Stainless Steel Application: Platform Scale
Interchangeable Brand: HBM IP Protection Standard: IP67
Accuracy Grade: C3 Non-linearity: 0.0166
Size: 139.7*30.5*30.2
High Light:

platform load cell

,

weighing machine using load cell

IPWSE 100kg to 750kg Single Point Load Cell for platform scale



Charateristic features


−   Accurasy calss C3MR with OIML R60 test Report

−   Max. Capacities: 100 kg...750 kg

−   Off center load compensated(OIML R76)

−   Complies with EMC guidelines

--   Six-wire configuration

−    6-wire circuit

--   platform size 600x800mm


Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3 0
Type IPWSE
Accuracy class1) C3MR
Number of load cell intervals (nLC) 3000
Maximum capacity (Emax)2)) kg 100 200 300 500 750

Minimum LC verification interval (vmin)

Accuracy class C3

g 10 20 20 50 50

Temperature effect on

zero balance (TK0)

Accuracy class C3



% v.

Cn /

10 K



±0.0140 ±0.0140 ±0.0093 ±0.0140 ±0.0093
platform size mm 600 x 800
Max. platform size 800 x 800
Sensitivity (Cn) mV/V 2.0±0.2
Zero balance 0±0.1

Temperature effect on

sensitivity (TKC)3)

Temperature range

+20 ... +40℃ [+68 ... +104℉]

−10 ... +20℃ [+14 ... +68℉]

% v.

Cn /

10 K



±0.0170

±0.0117

Hysteresis error (dhy)3) % of Cn ±0.0166
Non-linearity (dlin)3) ±0.0166
Minimum dead load output return (DR) ±0.0166
Off center load error4) ±0.01
Input resistance (RLC) Ω 390±15
Output resistance (R0) 359±10
Reference excitation voltage (Uref) V 5
Nominal range of excitation voltage (BU) 1...12
Max. excitation voltage 15
Insulation resistance (Ris) at 100 VDC > 2
Nominal temp. range (BT)

°C

[°F]

−10 ... +40 [+14 ... +104]
Service temp. range (Btu) −10 ... +50 [+14 ... +122]
Storage temp. range (Btl) −25 ... +70 [−13 ... +158]

Safe load limit (EL ), at max.

100mm eccentricity

% of

Emax

150
Lateral load limit (Elq), static

% of

Emax

300
Breaking load (Ed) 300
Weight (G), approx. kg 0.9 0.9 1.1 1.2 1.2

Protection class according to

EN 60 529 (IEC 529)

  IP67

Material: Measuring element

Coating

Cable sheath



Stainlesssteel 1.4545

PVC



Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3 1

Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3 2Six - Wire Configuration Load Cell 100kg To 750kg For 600x800mm Platform Scale IP67 Class C3 3
