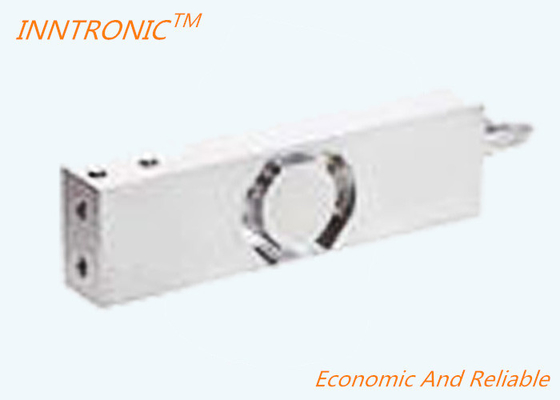

IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine

Customer Reviews
Fast sending, and good communication. Stuff tested, really great, thank you!

—— Pratik Rastogi

Excellent collaboration and communication. I can only recommend.

—— Alireza Green

Excellent quality! I've been looking for a high accuracy for a long time, here I find it!

—— Larry Geminiani

I'm Online Chat Now

IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine

IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine
IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine

Large Image :  IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine

Product Details:

Place of Origin: China
Brand Name: Inntronic
Model Number: IN- PW15AH

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 30days
Payment Terms: Western Union, T/T, paypal
Detailed Product Description
Type: Single Point Load Cell Capacity: 10kg 20kg 30kg 50kg 100kg
Output: 2mv/v Material: Stainless Steel
Application: Checkweigher, Filling Scale Machine Interchangeable Brand: HBM PW15AH 10kg 20kg 30kg 50kg 100kg
IP Protection Standard: IP68,IP69 Accuracy Grade: C3
High Light:

platform load cell

,

weighing machine using load cell

IN- PW15AH Single point load cell

-- STAINLESS STEEL

---IP69K

---10KG 20kg 30kg 50kg 100kg



Good quality with competitive price



Special features

-  Hermetically sealed(IP68; IP69K)
-  highest reliability
-  Reduced minimum load cell verification interval(V min) for multi range applications
-  Interchangeable to products of many manufacturers
-  Stainless steel
-  6-wire-technology
-  Integrated connection for protective cable conduit systems
Interchangeable with HBM PW15AH 10kg 20kg 30kg 50kg 100kg



Type PW15AH
Accuracy class1) C3 Multi Range (MR)
Number of load cell intervals (nLC) 3000
Maximum capacity (Emax)2)) kg 10 20 50 100
Minimum LC verification interval g 1 2 5 10

Temperature effect on

zero balance

% v.

Cn /

10 K



±0.0140 ±0.0140 ±0.0140 ±0.0140
Max. platform size mm 500 x 400
Sensitivity (Cn) mV/V 2.0±0.2
Zero balance 0±0.1

Temperature effect on

sensitivity (TKC)3)

Temperature range

+20 ... +40℃ [+68 ... +104℉]

−10 ... +20℃ [+14 ... +68℉]

% v.

Cn /

10 K



±0.0175

±0.0117

Hysteresis error (dhy)3) % of Cn ±0.0166
Non-linearity (dlin)3) ±0.0166
Minimum dead load output return (DR) ±0.0166
Off center load error4) ±0.0233
Input resistance (RLC) Ω 300 ... 500
Output resistance (R0) 330 ... 500
Reference excitation voltage (Uref) V 5
Nominal range of excitation voltage (BU) 1...12
Max. excitation voltage 15
Insulation resistance (Ris) at 100 VDC > 1
Nominal temp. range (BT)

°C

[°F]

−10 ... +40 [+14 ... +104]
Service temp. range (Btu) −10 ... +50 [+14 ... +122]
Storage temp. range (Btl) −25 ... +70 [−13 ... +158]
Safe load limit (EL ),

% of

Emax

150
at max. eccentricity mm 160
Lateral load limit (Elq), static

% of

Emax

300
Breaking load (Ed) 300
Deflection at Emax (snom), approx. mm < 0.5
Weight (G), approx. kg 1.0

Protection class according to

EN 60 529 (IEC 529)

  IP68(test conditions 100 h at 1m water column);IP69K(water at high presure,steam jet cleaning)

Material: Measuring element

Coating

Cable sheath



C1.4545

Silicone rubber

PVC

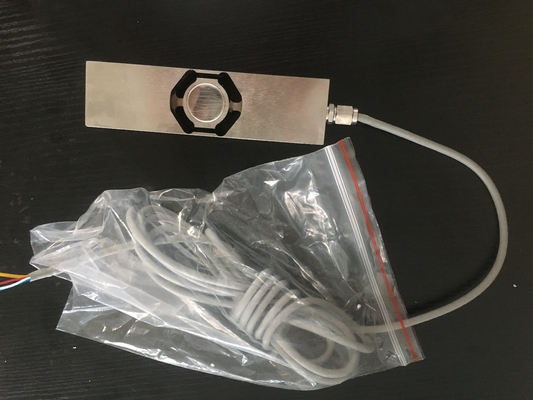

IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine 0



IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine 1



IN PW15AH 10KG 20KG 50KG 100kg single point stainless steel load cell for check weigher and filling scale machine 2
